Part Number | BNC7T-J-P-GN-ST-EM1 | Manufacturer | Samtec, Inc. |
---|---|---|---|
Description | CONN BNC JACK STR 75OHM EDGE MNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 10654 pcs | Data sheet | BNC7T-J-P-GN-ST-EM1.pdf |
Voltage Rating | 500V | Shield Termination | Solder |
Series | TRUE75™ BNC7T | Packaging | Bulk |
Other Names | BNC7T-J-P-GN-ST-EM1-ND SAM10414 |
Operating Temperature | -65°C ~ 125°C |
Number of Ports | 1 | Mounting Type | Board Edge, End Launch; Panel Mount |
Mounting Feature | Bulkhead - Front Side Nut | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Mating Cycles | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Insertion Loss | - | Ingress Protection | - |

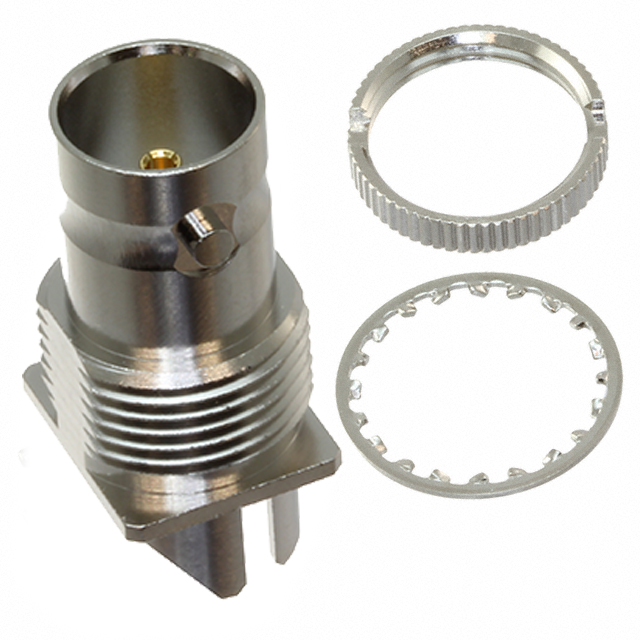

Includes | 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut | Impedance | 75 Ohm |
Housing Color | Silver | Frequency - Max | 12GHz |
Features | - | Fastening Type | Bayonet Lock |
Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | BNC Connector Jack, Female Socket 75 Ohm Board Edge, End Launch; Panel Mount Solder |
Contact Termination | Solder | Connector Type | Jack, Female Socket |
Connector Style | BNC | Center Contact Plating | Gold |
Center Contact Material | Copper Alloy | Cable Group | - |
Body Material | Brass | Body Finish | Nickel |
