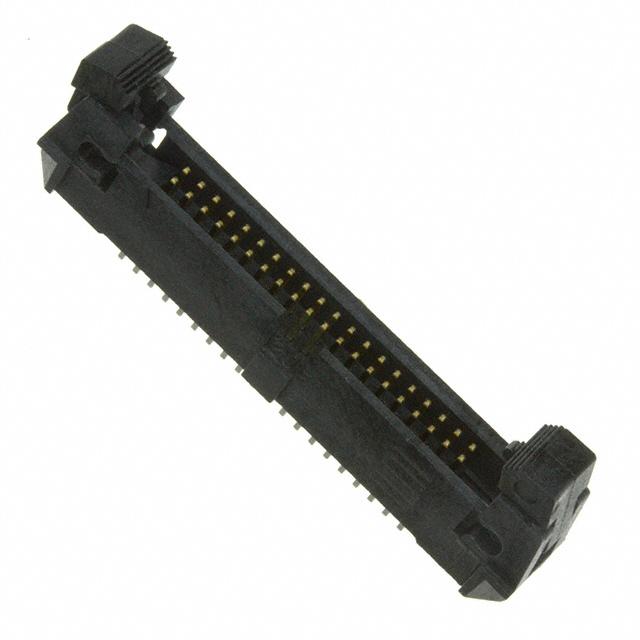

Part Number | EHF-120-01-L-D | Manufacturer | Samtec, Inc. |
---|---|---|---|
Description | CONN HEADER .05" 40POS DUAL T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 16651 pcs | Data sheet | 1.EHF-120-01-L-D.pdf2.EHF-120-01-L-D.pdf3.EHF-120-01-L-D.pdf |
Voltage Rating | - | Termination | Solder |
Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
Series | EHF | Row Spacing - Mating | 0.050" (1.27mm) |
Pitch - Mating | 0.050" (1.27mm) | Packaging | Tube |
Overall Contact Length | 0.350" (8.89mm) | Other Names | EHF12001LD SAM8211 |
Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
Number of Positions Loaded | All | Number of Positions | 40 |
Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Material Flammability Rating | - | Mated Stacking Heights | - |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
Insulation Height | 0.325" (8.25mm) | Insulation Color | Black |
Ingress Protection | - | Features | Keying Slot |
Fastening Type | Latch Lock/Eject Hooks | Detailed Description | Connector Header Through Hole 40 position 0.050" (1.27mm) |
Current Rating | 1.75A | Contact Type | Male Pin |
Contact Shape | Square | Contact Material | Phosphor Bronze |
Contact Length - Post | 0.107" (2.71mm) | Contact Length - Mating | 0.120" (3.05mm) |
Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
Connector Type | Header | Applications | - |
