2SB1570

Sanken Electric Co., Ltd.

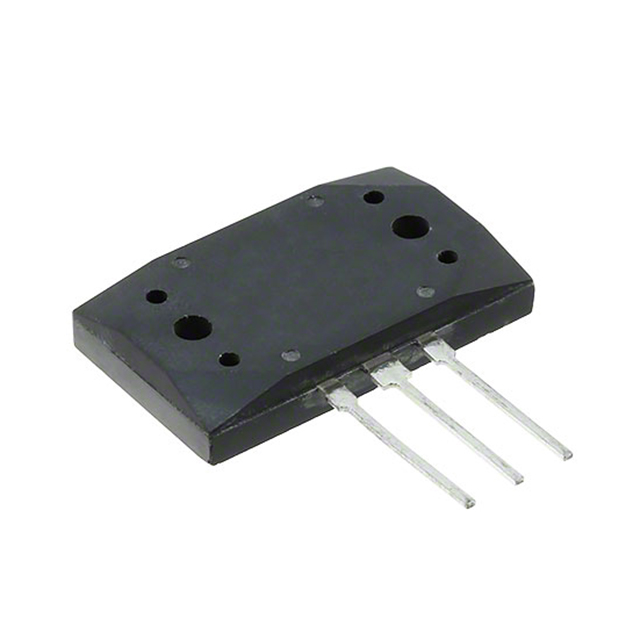

Image may be representation. See specifications for product details.

Product Overview

Part Number:	2SB1570
Manufacturer/Brand:	Sanken Electric Co., Ltd.
Product description	TRANS PNP DARL 150V 12A MT200
Datasheets:	2SB1570.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	13980 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 13980 pcs

Reference Price (In US Dollars)

1 pcs: $2.374

10 pcs: $2.121

25 pcs: $1.908

100 pcs: $1.739

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$2.374

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 2SB1570

Part Number	2SB1570	Manufacturer	Sanken Electric Co., Ltd.
Description	TRANS PNP DARL 150V 12A MT200	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	13980 pcs	Data sheet	2SB1570.pdf
Voltage - Collector Emitter Breakdown (Max)	150V	Vce Saturation (Max) @ Ib, Ic	2.5V @ 7mA, 7A
Transistor Type	PNP - Darlington	Supplier Device Package	MT-200
Series	-	Power - Max	150W
Packaging	Bulk	Package / Case	3-ESIP
Other Names	2SB1570 DK	Operating Temperature	150°C (TJ)
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Frequency - Transition	50MHz
Detailed Description	Bipolar (BJT) Transistor PNP - Darlington 150V 12A 50MHz 150W Through Hole MT-200	DC Current Gain (hFE) (Min) @ Ic, Vce	5000 @ 7A, 4V
Current - Collector Cutoff (Max)	100µA (ICBO)	Current - Collector (Ic) (Max)	12A
