PC123PY2

Sharp Microelectronics

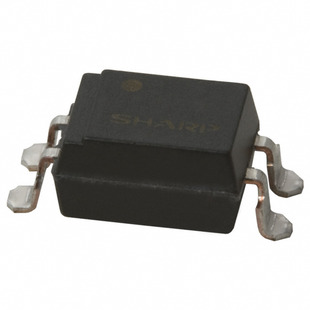

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PC123PY2
Manufacturer/Brand:	Sharp Microelectronics
Product description	OPTOISOLATR 5KV TRANSISTOR 4-SMD
Datasheets:	PC123PY2.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	89822 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 89822 pcs

Reference Price (In US Dollars)

1 pcs: $0.334

10 pcs: $0.271

25 pcs: $0.209

100 pcs: $0.188

250 pcs: $0.167

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.334

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PC123PY2

Part Number	PC123PY2	Manufacturer	Sharp Microelectronics
Description	OPTOISOLATR 5KV TRANSISTOR 4-SMD	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	89822 pcs	Data sheet	PC123PY2.pdf
Voltage - Output (Max)	70V	Voltage - Isolation	5000Vrms
Voltage - Forward (Vf) (Typ)	1.2V	Vce Saturation (Max)	200mV
Turn On / Turn Off Time (Typ)	-	Supplier Device Package	4-SMD
Series	-	Rise / Fall Time (Typ)	4µs, 3µs
Packaging	Cut Tape (CT)	Package / Case	4-SMD, Gull Wing
Output Type	Transistor	Other Names	425-1315-1
Operating Temperature	-30°C ~ 100°C	Number of Channels	1
Mounting Type	Surface Mount	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Input Type	DC	Detailed Description	Optoisolator Transistor Output 5000Vrms 1 Channel 4-SMD
Current Transfer Ratio (Min)	100% @ 5mA	Current Transfer Ratio (Max)	250% @ 5mA
Current - Output / Channel	50mA	Current - DC Forward (If) (Max)	50mA
