Tamura

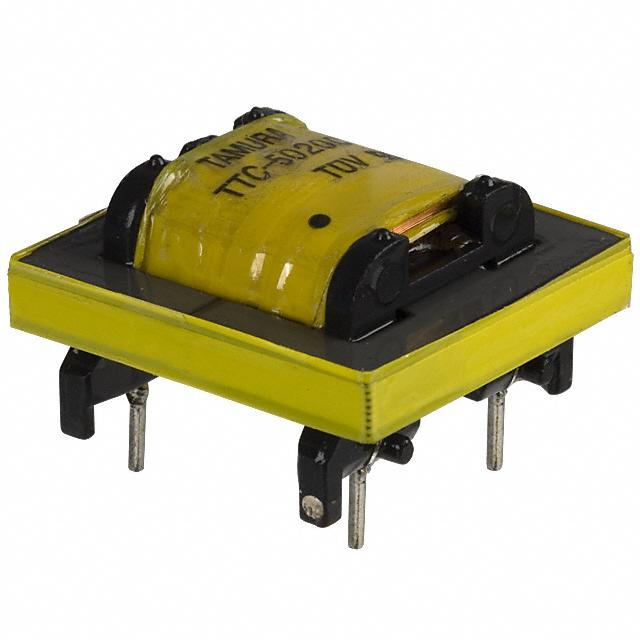

| Part Number | TTC-5020 | Manufacturer | Tamura |
|---|---|---|---|
| Description | TRANSFORMER COUPLING 600:301 OHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 22870 pcs | Data sheet | TTC-5020.pdf |
| Weight | - | Voltage - Isolation | 1875VRMS @ 1 Second |
| Turns Ratio - Primary:Secondary | 1:1 | Transformer Type | Data/Voice Coupling |
| Termination Style | PC Pin | Size / Dimension | 0.886" L x 0.909" W (22.50mm x 23.10mm) |
| Series | TTC | Return Loss | - |
| Power Level | -20dB ~ 4dB | Packaging | Bulk |
| Other Names | MT7236 TTC-5020-ND TTC-5020C TTC5020 |
Operating Temperature | - |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | 3.75dB Max @ 1kHz |
| Impedance - Secondary (Ohms) | 301 | Impedance - Primary (Ohms) | 600 |
| Height - Seated (Max) | 0.543" (13.80mm) | Frequency Response | ±1dB ~ ±4dB |
| Frequency Range | 300Hz ~ 3.5kHz | DC Resistance (DCR) - Secondary | 152 Ohm |
| DC Resistance (DCR) - Primary | 152 Ohm | Approvals | CSA-C22.2 No. 950-95, UL1950 |
