CSE185L

Triad Magnetics

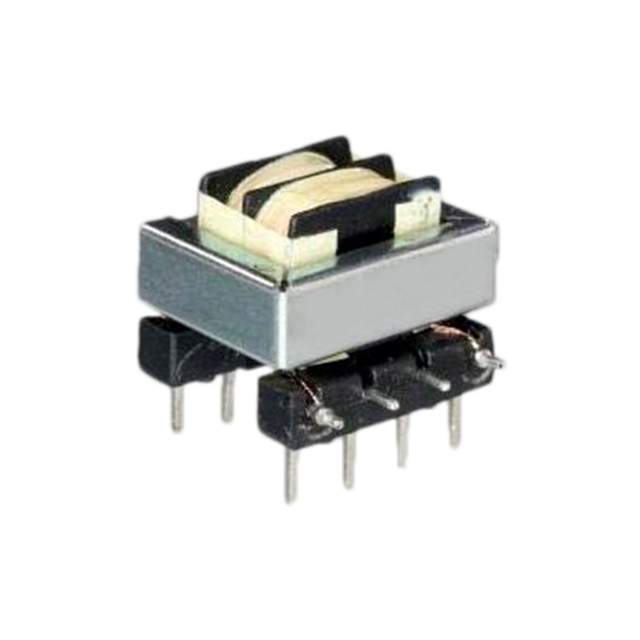

Image may be representation. See specifications for product details.

Product Overview

Part Number:	CSE185L
Manufacturer/Brand:	Triad Magnetics
Product description	CURR SENSE XFMR 1:50 3A T/H
Datasheets:	CSE185L.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	26277 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 26277 pcs

Reference Price (In US Dollars)

1 pcs: $1.163

10 pcs: $0.942

25 pcs: $0.762

50 pcs: $0.714

100 pcs: $0.681

250 pcs: $0.661

500 pcs: $0.641

1000 pcs: $0.621

5000 pcs: $0.571

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.163

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of CSE185L

Part Number	CSE185L	Manufacturer	Triad Magnetics
Description	CURR SENSE XFMR 1:50 3A T/H	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	26277 pcs	Data sheet	CSE185L.pdf
Weight	-	Type	Invasive
Turns Ratio - Primary:Secondary	1:50	Termination Style	PC Pin
Size / Dimension	0.846" L x 0.945" W (21.50mm x 24.00mm)	Series	-
Ratings	-	Packaging	Bulk
Other Names	237-2083	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height - Seated (Max)	0.709" (18.00mm)	Frequency Range	50Hz ~ 400Hz
Energy Time (E.T.)	-	Detailed Description	3A 1:50 Current Sense Transformer 50Hz ~ 400Hz 19.5 mOhm Primary, 23 Ohm Secondary Through Hole
DC Resistance (DCR)	19.5 mOhm Primary, 23 Ohm Secondary	Current Ratio	-
Current Rating	3A
