F-109U

Triad Magnetics

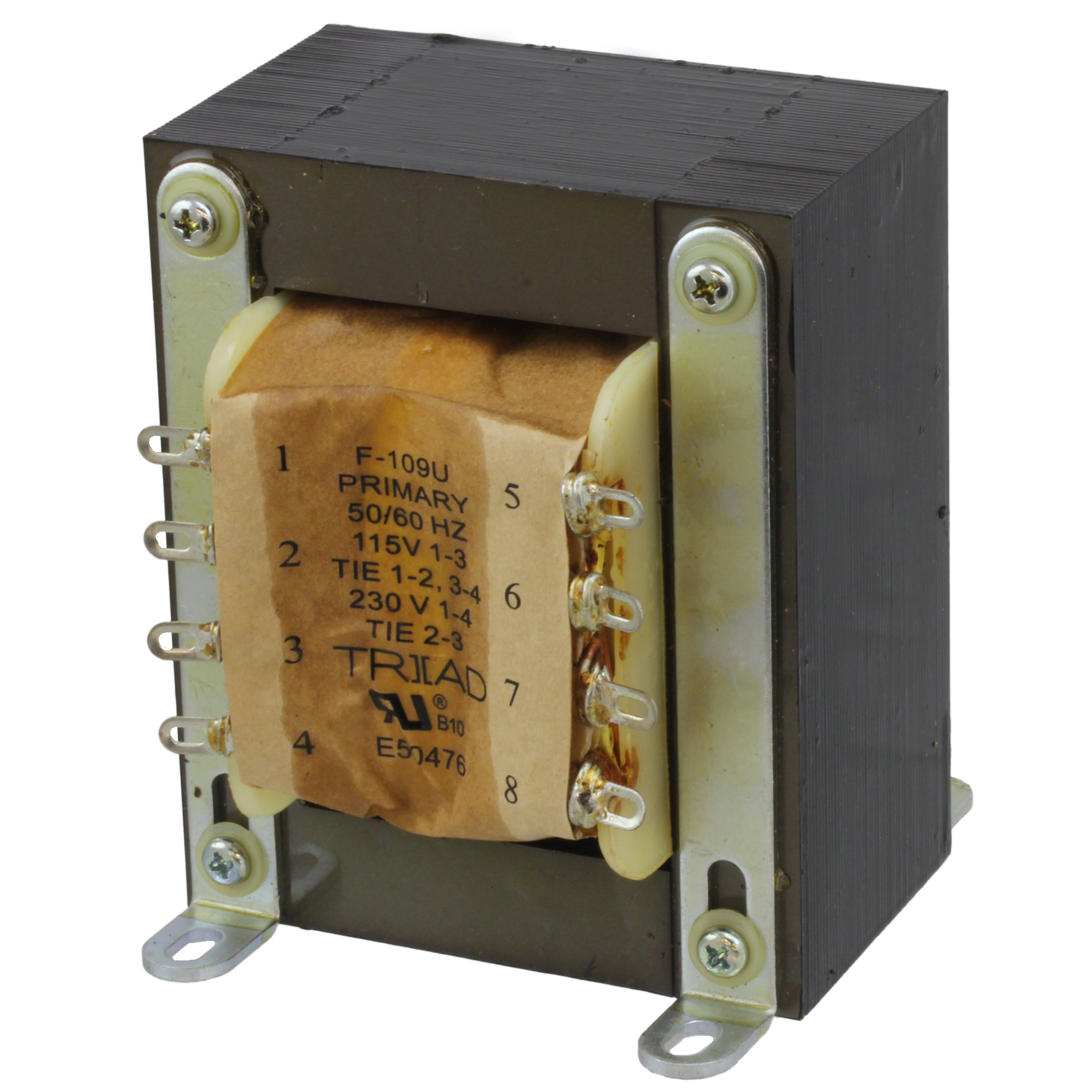

Image may be representation. See specifications for product details.

Product Overview

Part Number:	F-109U
Manufacturer/Brand:	Triad Magnetics
Product description	POWER XFMR CHASSIS MOUNT W/LUGS
Datasheets:	F-109U.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	2165 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 2165 pcs

Reference Price (In US Dollars)

1 pcs: $14.741

10 pcs: $14.248

25 pcs: $13.265

50 pcs: $12.283

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$14.741

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of F-109U

Part Number	F-109U	Manufacturer	Triad Magnetics
Description	POWER XFMR CHASSIS MOUNT W/LUGS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2165 pcs	Data sheet	F-109U.pdf
Weight	8 lbs (3.6kg)	Voltage - Secondary (Full Load)	Parallel 12V, Series 24V
Voltage - Primary	115V, 230V	Voltage - Isolation	1500Vrms
Type	Laminated Core	Termination Style	Solder Lug
Size / Dimension	87.30mm L x 90.47mm W	Series	Control Transformers
Secondary Winding(s)	Dual	Primary Winding(s)	Dual
Power - Max	192 VA	Other Names	237-1899
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height - Seated (Max)	106.35mm
Current - Output (Max)	Parallel 16A, Series 8A	Center Tap	No
