F-301X

Triad Magnetics

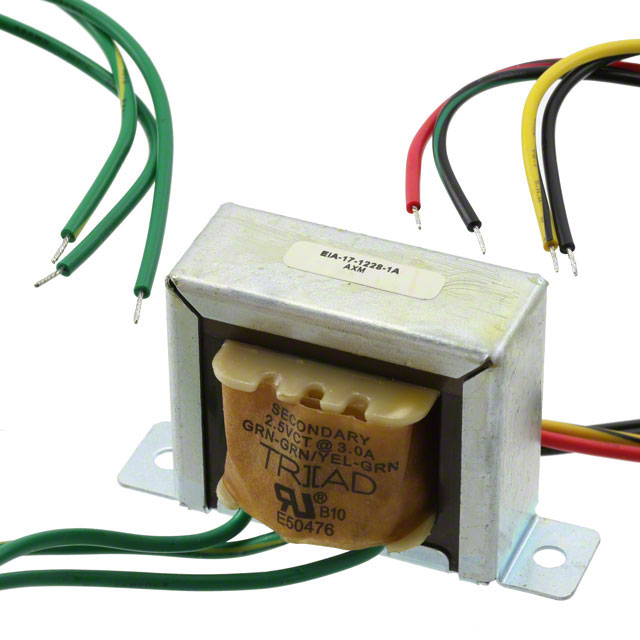

Image may be representation. See specifications for product details.

Product Overview

Part Number:	F-301X
Manufacturer/Brand:	Triad Magnetics
Product description	POWER XFMR CHASSIS MOUNT W/LEADS
Datasheets:	F-301X.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	7508 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 7508 pcs

Reference Price (In US Dollars)

1 pcs: $4.239

10 pcs: $3.13

25 pcs: $2.889

50 pcs: $2.793

100 pcs: $2.716

250 pcs: $2.677

500 pcs: $2.649

1000 pcs: $2.60

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$4.239

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of F-301X

Part Number	F-301X	Manufacturer	Triad Magnetics
Description	POWER XFMR CHASSIS MOUNT W/LEADS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	7508 pcs	Data sheet	F-301X.pdf
Weight	0.68 lb (308.44g)	Voltage - Secondary (Full Load)	2.5V
Voltage - Primary	115V, 230V	Voltage - Isolation	1500Vrms
Type	Laminated Core	Termination Style	Wire Leads
Size / Dimension	71.45mm L x 41.28mm W	Series	Single Secondary
Secondary Winding(s)	Single	Primary Winding(s)	Dual
Power - Max	7.5 VA	Other Names	237-1960
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height - Seated (Max)	41.28mm
Current - Output (Max)	3A	Center Tap	Yes
