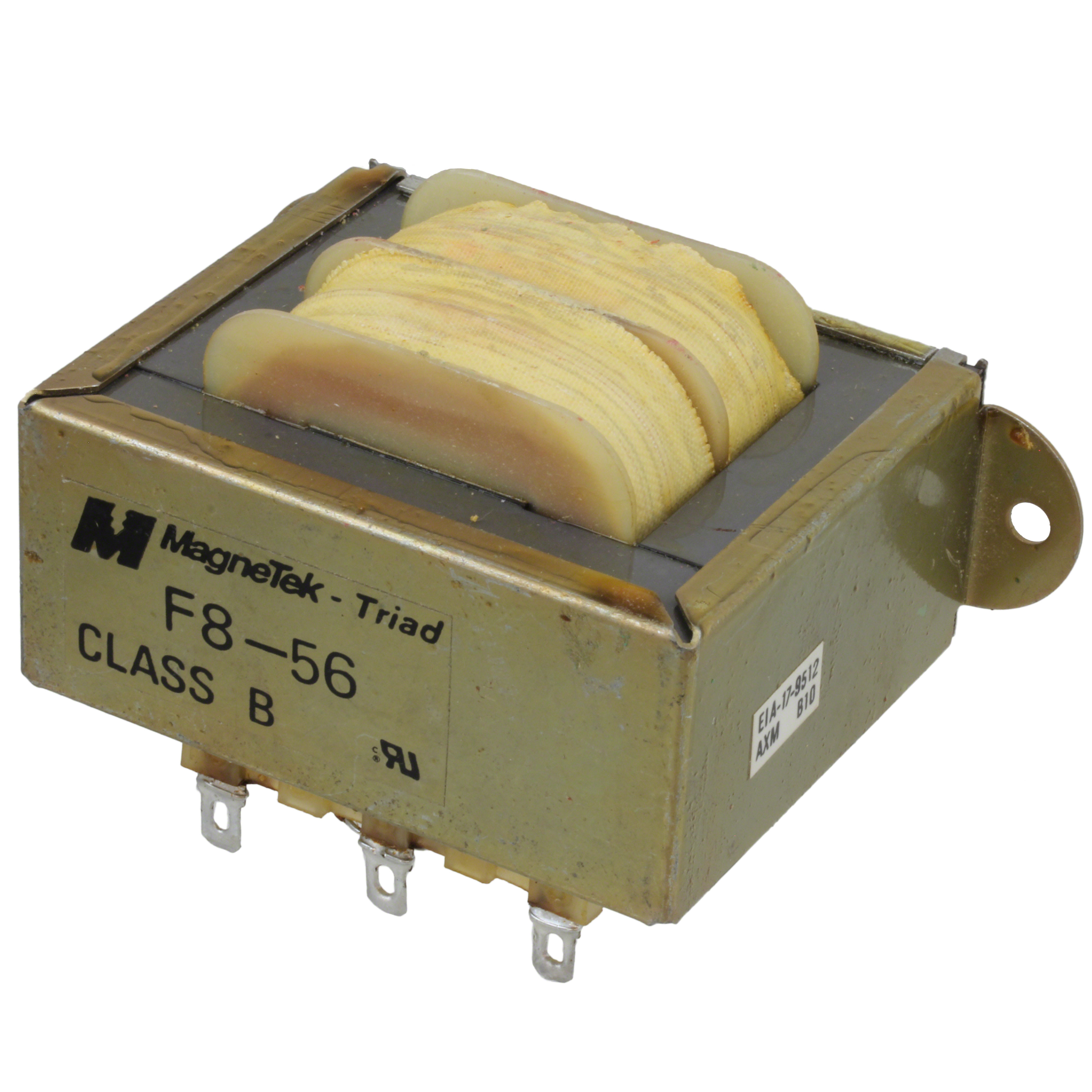

F8-56

Triad Magnetics

Image may be representation. See specifications for product details.

Product Overview

Part Number:	F8-56
Manufacturer/Brand:	Triad Magnetics
Product description	XFRMR LAMINATED THRU HOLE
Datasheets:	F8-56.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	3987 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 3987 pcs

Reference Price (In US Dollars)

1 pcs: $7.214

10 pcs: $6.364

25 pcs: $6.152

50 pcs: $5.515

100 pcs: $5.303

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$7.214

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of F8-56

Part Number	F8-56	Manufacturer	Triad Magnetics
Description	XFRMR LAMINATED THRU HOLE	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3987 pcs	Data sheet	F8-56.pdf
Weight	2.8 lbs (1.3kg)	Voltage - Secondary (Full Load)	56V
Voltage - Primary	115V	Voltage - Isolation	2500VAC
Type	Laminated Core	Termination Style	Solder, Quick Connect - 0.187" (4.7mm)
Size / Dimension	102.39mm L x 57.15mm W	Series	Quick Pack
Secondary Winding(s)	Single	Primary Winding(s)	Single
Power - Max	100 VA	Other Names	237-1725
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height - Seated (Max)	65.07mm
Current - Output (Max)	1.8A	Center Tap	Yes
