TY-301P

Triad Magnetics

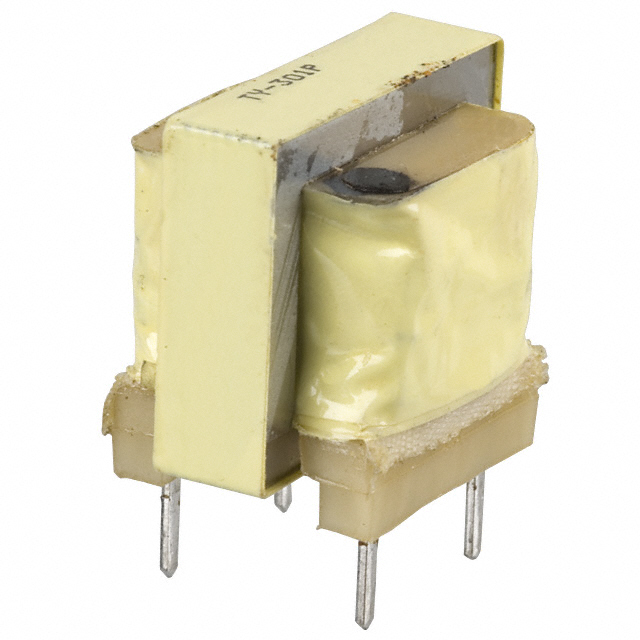

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TY-301P
Manufacturer/Brand:	Triad Magnetics
Product description	TRANSF 900 OHM SEC. 0MA DC TEL
Datasheets:	TY-301P.pdf
RoHs Status	Contains lead / RoHS Compliant
Stock Condition	26762 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 26762 pcs

Reference Price (In US Dollars)

25 pcs: $1.365

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.365

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TY-301P

Part Number	TY-301P	Manufacturer	Triad Magnetics
Description	TRANSF 900 OHM SEC. 0MA DC TEL	Lead Free Status / RoHS Status	Contains lead / RoHS Compliant
Quantity Available	26762 pcs	Data sheet	TY-301P.pdf
Weight	-	Voltage - Isolation	1500VAC
Turns Ratio - Primary:Secondary	1:1.27	Transformer Type	Data/Voice Coupling
Termination Style	PC Pin	Size / Dimension	0.812" L x 0.700" W (20.62mm x 17.78mm)
Series	TY	Return Loss	26dB Typ
Power Level	-45dB ~ 7dB	Packaging	Bulk
Other Names	237-1124	Operating Temperature	-
Mounting Type	Through Hole	Lead Free Status / RoHS Status	Contains lead / RoHS Compliant
Insertion Loss	1dB Typ	Impedance - Secondary (Ohms)	900
Impedance - Primary (Ohms)	600	Height - Seated (Max)	0.740" (18.80mm)
Frequency Response	±0.5dB	Frequency Range	300Hz ~ 3.5kHz
DC Resistance (DCR) - Secondary	-	DC Resistance (DCR) - Primary	-
Approvals	-
