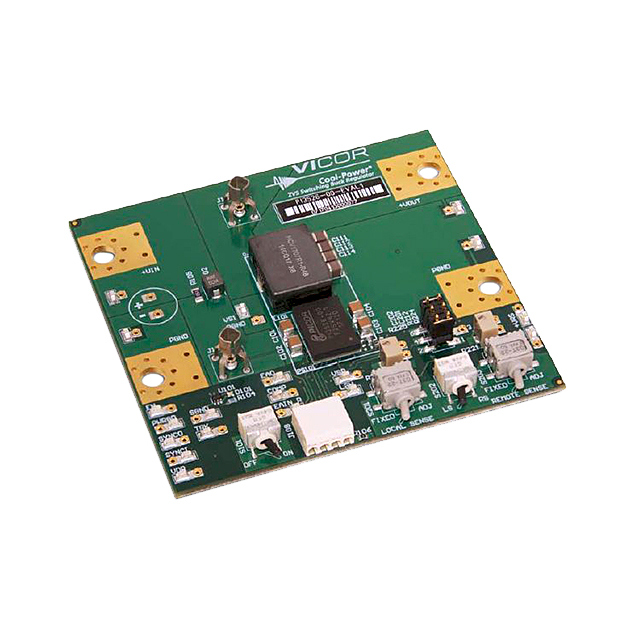

PI3523-00-EVAL1

Vicor

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PI3523-00-EVAL1
Manufacturer/Brand:	Vicor
Product description	EVALUATION BOARD FOR PI3523-00-L
Datasheets:	1.PI3523-00-EVAL1.pdf 2.PI3523-00-EVAL1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	406 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 406 pcs

Reference Price (In US Dollars)

1 pcs: $71.877

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$71.877

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PI3523-00-EVAL1

Part Number	PI3523-00-EVAL1	Manufacturer	Vicor
Description	EVALUATION BOARD FOR PI3523-00-L	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	406 pcs	Data sheet	1.PI3523-00-EVAL1.pdf 2.PI3523-00-EVAL1.pdf
Voltage - Output	3.3V	Voltage - Input	2.2 V ~ 4 V
Utilized IC / Part	PI3523-00	Supplied Contents	Board(s)
Series	*	Regulator Topology	Buck
Outputs and Type	1, Non-Isolated	Other Names	1102-5734
Main Purpose	DC/DC, Step Down	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Detailed Description	PI3523-00 * DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board	Current - Output	22A
Board Type	Fully Populated
