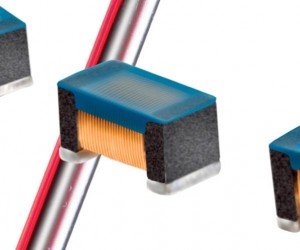

L up and R down in 0402 inductors

There are 25 values from 20nH to 3.3µH (+/- 5%).

As an example of resistance, the 220nH value is 240mΩ – 55% lower than the same value in Coilcraft’s 0402AF sSeries “making it optimised for use as a harmonic filter element for NFC applications”, said the firm.

Other proposed applications are as elements in band-stop filters, low-pass filters, one-pole filters, an RF choke in cellular bands, or for ground-to-ground isolation.

The cores are ferrite, and terminations are RoHS 6/6-compliant matte tin over nickel over silver-palladium-glass frit.
