30320-5002HB

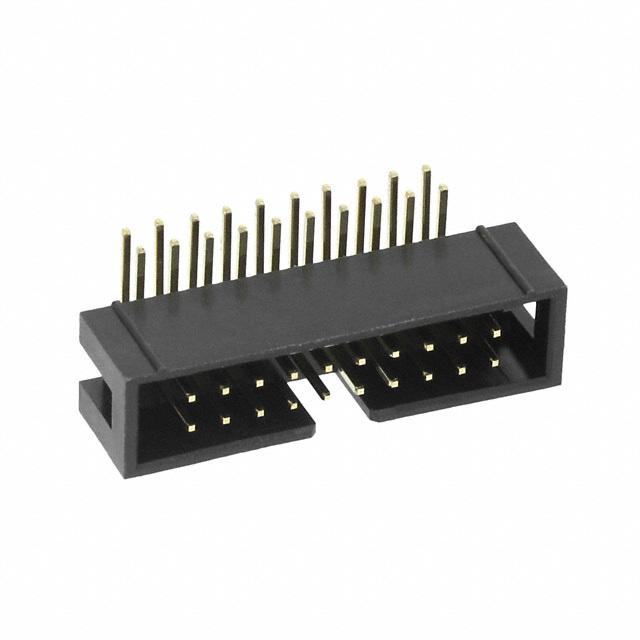

Image may be representation. See specifications for product details.

Product Overview

Part Number:	30320-5002HB
Manufacturer/Brand:	3M
Product description	CONN HEADER 20POS DL R/A GOLD
Datasheets:	30320-5002HB.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	88780 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 88780 pcs

Reference Price (In US Dollars)

1 pcs: $0.418

10 pcs: $0.367

100 pcs: $0.317

500 pcs: $0.259

1000 pcs: $0.23

5000 pcs: $0.202

10000 pcs: $0.192

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.418

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 30320-5002HB

Part Number	30320-5002HB	Manufacturer	3M
Description	CONN HEADER 20POS DL R/A GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	88780 pcs	Data sheet	30320-5002HB.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 4 Wall
Series	303	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	05111161784 30320-5002HB-ND 303205002HB 3M15454 5111161784 51111617847 7000098789 SE008002070
Operating Temperature	-55°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	20
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Insulation Height	0.331" (8.40mm)	Insulation Color	Black
Ingress Protection	-	Features	Keying Slot
Fastening Type	Push-Pull	Detailed Description	Connector Header Through Hole, Right Angle 20 position 0.100" (2.54mm)
Current Rating	1A	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Brass
Contact Length - Post	0.110" (2.79mm)	Contact Length - Mating	0.236" (6.00mm)
Contact Finish Thickness - Post	Flash	Contact Finish Thickness - Mating	Flash
Contact Finish - Post	Gold	Contact Finish - Mating	Gold
Connector Type	Header	Applications	-
