3M
| Part Number | 8309-7003 | Manufacturer | 3M |
|---|---|---|---|

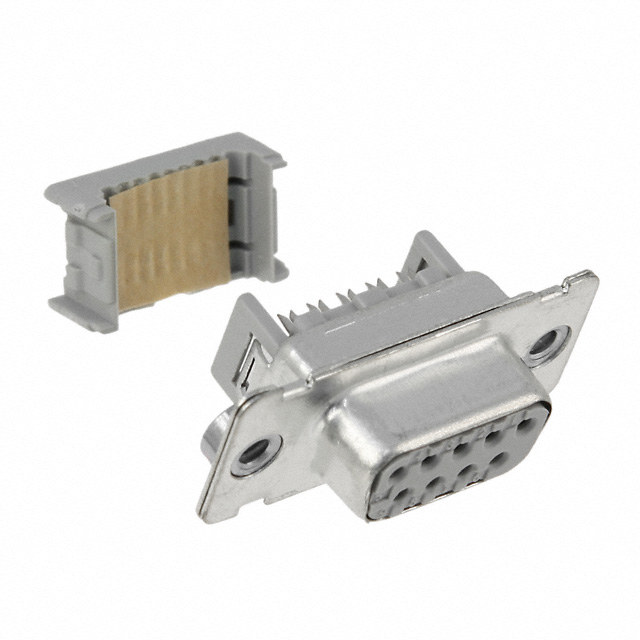

| Description | CONN D-SUB RCPT 9POS PNL MNT IDC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9649 pcs | Data sheet | 1.8309-7003.pdf2.8309-7003.pdf |
| Wire Gauge | 26-28 AWG | Voltage Rating | - |
| Termination | IDC, Ribbon Cable | Shell Size, Connector Layout | 1 (DE, E) |
| Shell Material, Finish | Steel, Tin Plated | Series | 8300 |
| Packaging | Bulk | Other Names | 05111165734 5111165734 51111657348 7010398098 80610186126 83097003 |
| Operating Temperature | -55°C ~ 105°C | Number of Rows | 2 |
| Number of Positions | 9 | Mounting Type | Panel Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled | Flange Feature | Housing/Shell (4-40) |
| Features | - | Detailed Description | 9 Position D-Sub Receptacle, Female Sockets Connector |
| Current Rating | 1A | Contact Type | Signal |
| Contact Material | Copper Alloy | Contact Form | - |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub |
| Color | Gray | Backset Spacing | - |
