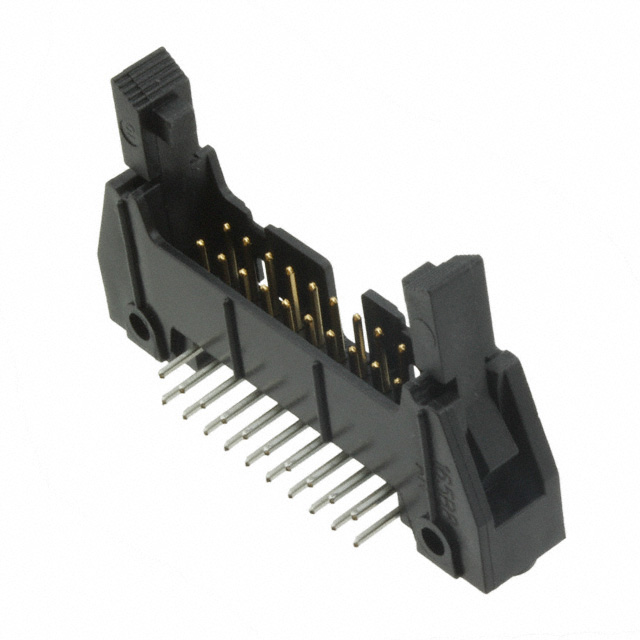

Part Number | D3428-5302-AR | Manufacturer | 3M |
---|---|---|---|
Description | CONN HEADER 20POS R/A LONG LATCH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 69565 pcs | Data sheet | 1.D3428-5302-AR.pdf2.D3428-5302-AR.pdf |
Voltage Rating | - | Termination | Solder |
Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
Series | D3000 | Row Spacing - Mating | 0.100" (2.54mm) |
Pitch - Mating | 0.100" (2.54mm) | Packaging | Tray |
Overall Contact Length | - | Other Names | 0-00-51119-90811-4 5111990811 51119908114 7010347814 80-0012-0538-6 80001205386 D3428-5302AR D34285302AR |
Operating Temperature | -55°C ~ 105°C | Number of Rows | 2 |
Number of Positions Loaded | All | Number of Positions | 20 |
Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled |
Insulation Height | 0.340" (8.64mm) | Insulation Color | Black |
Ingress Protection | - | Features | Keying Slot, Mounting Flange |
Fastening Type | Latch Lock/Eject Hooks, Long | Detailed Description | Connector Header Through Hole, Right Angle 20 position 0.100" (2.54mm) |
Current Rating | 1.75A | Contact Type | Male Pin |
Contact Shape | Square | Contact Material | Brass |
Contact Length - Post | 0.112" (2.84mm) | Contact Length - Mating | 0.240" (6.10mm) |
Contact Finish Thickness - Post | 39.4µin (1.00µm) | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
Connector Type | Header | Applications | - |
