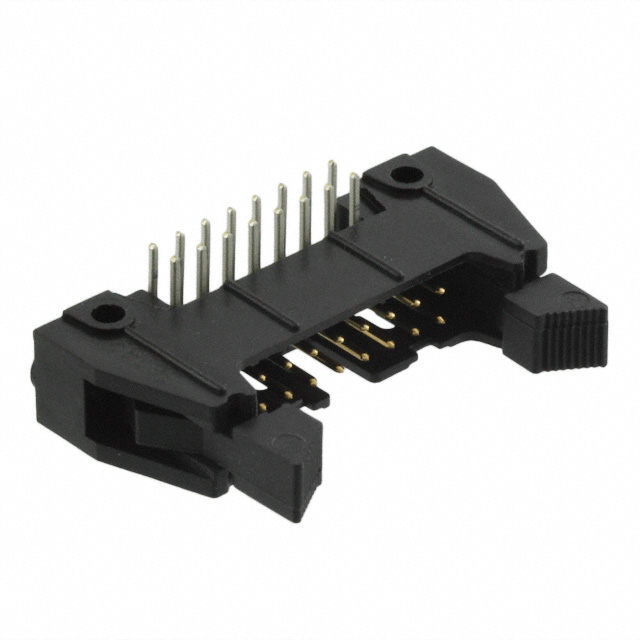

Part Number | N3408-5202RB | Manufacturer | 3M |
---|---|---|---|
Description | CONN HEADER 16PS R/A SHORT LATCH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 31816 pcs | Data sheet | 1.N3408-5202RB.pdf2.N3408-5202RB.pdf |
Voltage Rating | - | Termination | Solder |
Style | Board to Board or Cable | Shrouding | Shrouded - 4 Wall |
Series | 3000 | Row Spacing - Mating | 0.100" (2.54mm) |
Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
Overall Contact Length | - | Other Names | 00051111627532 00051111656389 05111162753 05111165638 5111162753 51111627532 5111165638 51111656389 7000005864 80000900417 80400031615 MHR16S N3408-5202RB-ND N3408-5502RB N3408-5502RB-ND N34085202RB |
Operating Temperature | -55°C ~ 105°C | Number of Rows | 2 |
Number of Positions Loaded | All | Number of Positions | 16 |
Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled |
Insulation Height | 0.340" (8.64mm) | Insulation Color | Black |
Ingress Protection | - | Features | Keying Slot, Mounting Flange |
Fastening Type | Latch Lock/Eject Hooks, Short | Detailed Description | Connector Header Through Hole, Right Angle 16 position 0.100" (2.54mm) |
Current Rating | 1.75A | Contact Type | Male Pin |
Contact Shape | Square | Contact Material | Copper Alloy |
Contact Length - Post | 0.112" (2.84mm) | Contact Length - Mating | 0.240" (6.10mm) |
Contact Finish Thickness - Post | 200.0µin (5.08µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
Connector Type | Header | Applications | - |
