ADL5536ARKZ-R7

ADI (Analog Devices, Inc.)

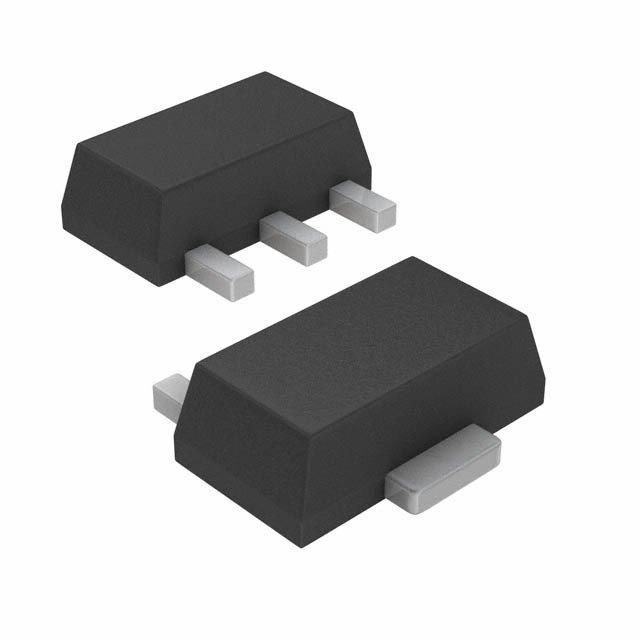

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ADL5536ARKZ-R7
Manufacturer/Brand:	ADI (Analog Devices, Inc.)
Product description	IC RF AMP GP 20MHZ-1GHZ SOT89-3
Datasheets:	ADL5536ARKZ-R7.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	35679 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 35679 pcs

Reference Price (In US Dollars)

1000 pcs: $0.86

2000 pcs: $0.817

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.86

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ADL5536ARKZ-R7

Part Number	ADL5536ARKZ-R7	Manufacturer	ADI (Analog Devices, Inc.)
Description	IC RF AMP GP 20MHZ-1GHZ SOT89-3	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	35679 pcs	Data sheet	ADL5536ARKZ-R7.pdf
Voltage - Supply	4.5 V ~ 5.5 V	Test Frequency	380MHz
Supplier Device Package	SOT-89-3	Series	-
RF Type	General Purpose	Packaging	Tape & Reel (TR)
Package / Case	TO-243AA	P1dB	19.7dBm
Other Names	ADL5536ARKZ-R7-ND ADL5536ARKZ-R7TR ADL5536ARKZR7	Noise Figure	2.7dB
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Gain	19.4dB	Frequency	20MHz ~ 1GHz
Detailed Description	RF Amplifier IC General Purpose 20MHz ~ 1GHz SOT-89-3	Current - Supply	105mA
Base Part Number	ADL5536
