BXL4001

AMI Semiconductor / ON Semiconductor

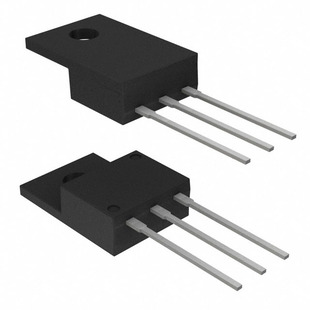

Image may be representation. See specifications for product details.

Product Overview

Part Number:	BXL4001
Manufacturer/Brand:	AMI Semiconductor / ON Semiconductor
Product description	MOSFET N-CH 75V 85A TO-220
Datasheets:	BXL4001.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	2833 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 2833 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of BXL4001

Part Number	BXL4001	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	MOSFET N-CH 75V 85A TO-220	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2833 pcs	Data sheet	BXL4001.pdf
Vgs(th) (Max) @ Id	4V @ 1mA	Vgs (Max)	±20V
Technology	MOSFET (Metal Oxide)	Supplier Device Package	TO-220(LS)
Series	-	Rds On (Max) @ Id, Vgs	12.4 mOhm @ 43A, 10V
Power Dissipation (Max)	1.75W (Ta), 75W (Tc)	Packaging	Bulk
Package / Case	TO-220-3	Operating Temperature	150°C (TJ)
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Capacitance (Ciss) (Max) @ Vds	6700pF @ 20V
Gate Charge (Qg) (Max) @ Vgs	115nC @ 10V	FET Type	N-Channel
FET Feature	-	Drive Voltage (Max Rds On, Min Rds On)	10V
Drain to Source Voltage (Vdss)	75V	Detailed Description	N-Channel 75V 85A (Ta) 1.75W (Ta), 75W (Tc) Through Hole TO-220(LS)
Current - Continuous Drain (Id) @ 25°C	85A (Ta)
