FDQ7698S

AMI Semiconductor / ON Semiconductor

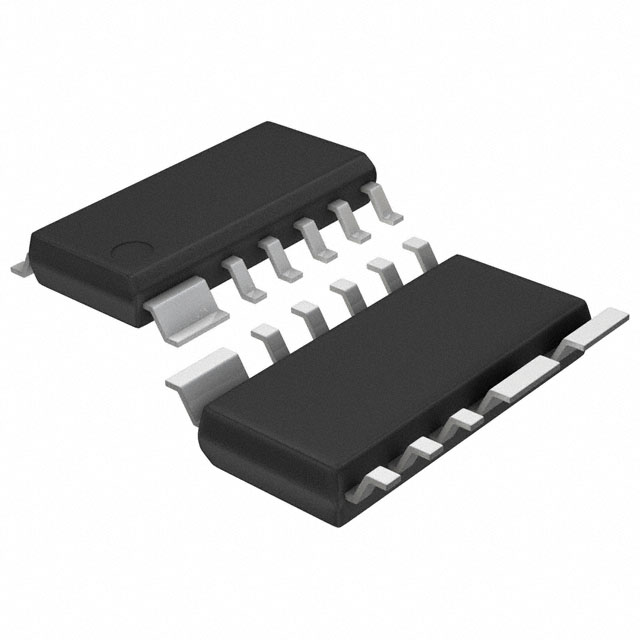

Image may be representation. See specifications for product details.

Product Overview

Part Number:	FDQ7698S
Manufacturer/Brand:	AMI Semiconductor / ON Semiconductor
Product description	MOSFET 2N-CH 30V 12A/15A 14SOIC
Datasheets:	FDQ7698S.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	4888 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 4888 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of FDQ7698S

Part Number	FDQ7698S	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	MOSFET 2N-CH 30V 12A/15A 14SOIC	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4888 pcs	Data sheet	FDQ7698S.pdf
Vgs(th) (Max) @ Id	3V @ 250µA	Supplier Device Package	14-SO
Series	PowerTrench®	Rds On (Max) @ Id, Vgs	7.5 mOhm @ 15A, 10V
Power - Max	1.1W, 1.3W	Packaging	Tape & Reel (TR)
Package / Case	14-SOIC (0.154", 3.90mm Width), 11 Leads, Fused Leads	Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Capacitance (Ciss) (Max) @ Vds	1324pF @ 15V
Gate Charge (Qg) (Max) @ Vgs	17nC @ 5V	FET Type	2 N-Channel (Dual)
FET Feature	Logic Level Gate	Drain to Source Voltage (Vdss)	30V
Detailed Description	Mosfet Array 2 N-Channel (Dual) 30V 12A, 15A 1.1W, 1.3W Surface Mount 14-SO	Current - Continuous Drain (Id) @ 25°C	12A, 15A
