H11N1SVM

AMI Semiconductor / ON Semiconductor

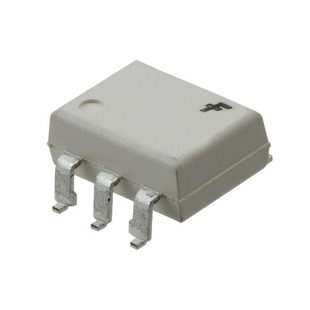

Image may be representation. See specifications for product details.

Product Overview

Part Number:	H11N1SVM
Manufacturer/Brand:	AMI Semiconductor / ON Semiconductor
Product description	OPTOISO 4.17KV OPN COLL 6SMD
Datasheets:	H11N1SVM.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	14766 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 14766 pcs

Reference Price (In US Dollars)

1 pcs: $2.427

10 pcs: $2.022

100 pcs: $1.455

500 pcs: $1.172

1000 pcs: $1.075

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.427

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of H11N1SVM

Part Number	H11N1SVM	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	OPTOISO 4.17KV OPN COLL 6SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	14766 pcs	Data sheet	H11N1SVM.pdf
Voltage - Supply	4 V ~ 15 V	Voltage - Isolation	4170Vrms
Voltage - Forward (Vf) (Typ)	1.4V	Supplier Device Package	6-SMD
Series	-	Rise / Fall Time (Typ)	7.5ns, 12ns
Propagation Delay tpLH / tpHL (Max)	330ns, 330ns	Packaging	Tube
Package / Case	6-SMD, Gull Wing	Output Type	Open Collector
Operating Temperature	-40°C ~ 85°C	Number of Channels	1
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inputs - Side 1/Side 2	1/0
Input Type	DC	Detailed Description	Logic Output Optoisolator 5MHz Open Collector 4170Vrms 1 Channel 6-SMD
Data Rate	5MHz	Current - Output / Channel	50mA
Current - DC Forward (If) (Max)	30mA	Common Mode Transient Immunity (Min)	-
