WPH4003-1E

AMI Semiconductor / ON Semiconductor

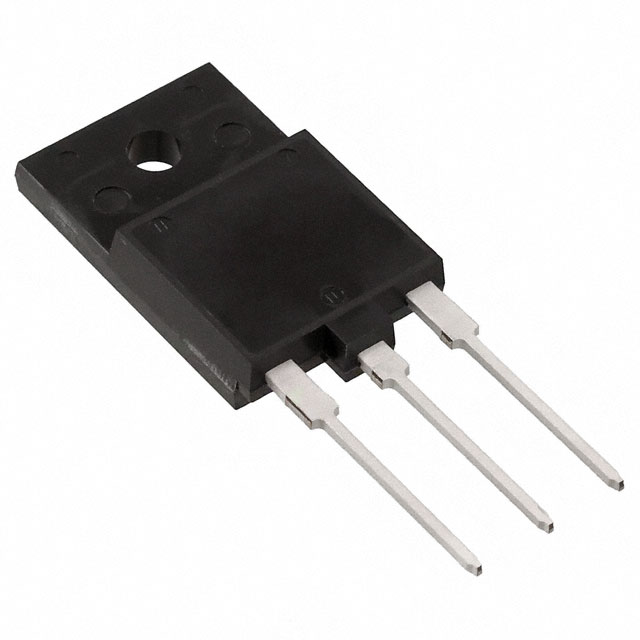

Image may be representation. See specifications for product details.

Product Overview

Part Number:	WPH4003-1E
Manufacturer/Brand:	AMI Semiconductor / ON Semiconductor
Product description	MOSFET N-CH 1700V 2.5A
Datasheets:	WPH4003-1E.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	15691 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 15691 pcs

Reference Price (In US Dollars)

1 pcs: $2.206

30 pcs: $1.772

120 pcs: $1.615

510 pcs: $1.307

1020 pcs: $1.103

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.206

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of WPH4003-1E

Part Number	WPH4003-1E	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	MOSFET N-CH 1700V 2.5A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	15691 pcs	Data sheet	WPH4003-1E.pdf
Vgs(th) (Max) @ Id	-	Vgs (Max)	±30V
Technology	MOSFET (Metal Oxide)	Supplier Device Package	TO-3PF
Series	-	Rds On (Max) @ Id, Vgs	10.5 Ohm @ 1.5A, 10V
Power Dissipation (Max)	3W (Ta), 55W (Tc)	Packaging	Tube
Package / Case	TO-3P-3 Full Pack	Other Names	WPH4003-1EOS
Operating Temperature	150°C (TJ)	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Capacitance (Ciss) (Max) @ Vds	850pF @ 30V	Gate Charge (Qg) (Max) @ Vgs	48nC @ 10V
FET Type	N-Channel	FET Feature	-
Drive Voltage (Max Rds On, Min Rds On)	10V	Drain to Source Voltage (Vdss)	1700V
Detailed Description	N-Channel 1700V 2.5A (Tc) 3W (Ta), 55W (Tc) Through Hole TO-3PF	Current - Continuous Drain (Id) @ 25°C	2.5A (Tc)
