ATS-PCBT1077

Advanced Thermal Solutions, Inc.

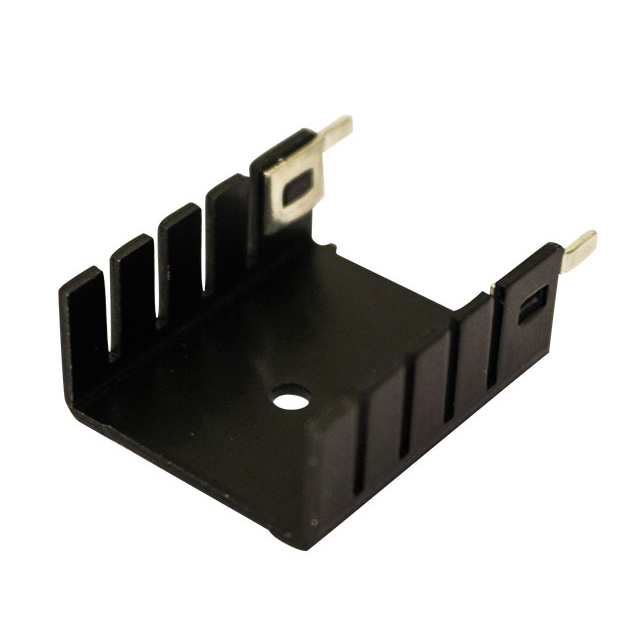

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ATS-PCBT1077
Manufacturer/Brand:	Advanced Thermal Solutions, Inc.
Product description	HEATSINK TO-220 BLACK W/TAB
Datasheets:	ATS-PCBT1077.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	171477 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 171477 pcs

Reference Price (In US Dollars)

1 pcs: $0.20

10 pcs: $0.191

25 pcs: $0.182

50 pcs: $0.177

100 pcs: $0.175

250 pcs: $0.163

500 pcs: $0.153

1000 pcs: $0.139

5000 pcs: $0.134

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.20

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ATS-PCBT1077

Part Number	ATS-PCBT1077	Manufacturer	Advanced Thermal Solutions, Inc.
Description	HEATSINK TO-220 BLACK W/TAB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	171477 pcs	Data sheet	ATS-PCBT1077.pdf
Width	1.000" (25.40mm)	Type	Board Level, Vertical
Thermal Resistance @ Natural	12.50°C/W	Thermal Resistance @ Forced Air Flow	7.30°C/W @ 200 LFM
Shape	Rectangular, Fins	Series	-
Power Dissipation @ Temperature Rise	-	Package Cooled	TO-220
Other Names	ATS2119	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Finish	Black Anodized	Material	Aluminum
Length	1.180" (29.97mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height Off Base (Height of Fin)	0.500" (12.70mm)	Diameter	-
Detailed Description	Heat Sink TO-220 Aluminum Board Level, Vertical	Attachment Method	Bolt On and PC Pin
