0010085061

Affinity Medical Technologies - a Molex company

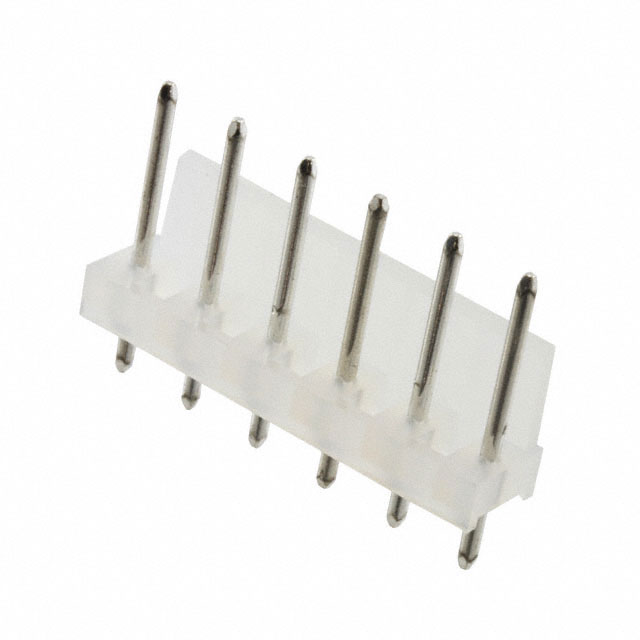

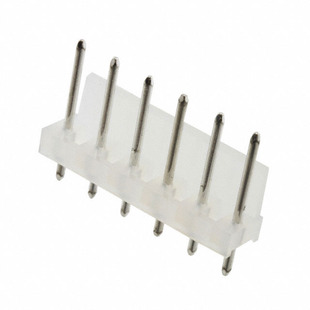

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0010085061
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER VERT TIN 6CKT
Datasheets:	0010085061.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	95342 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 95342 pcs

Reference Price (In US Dollars)

1 pcs: $0.302

10 pcs: $0.265

100 pcs: $0.229

500 pcs: $0.187

1000 pcs: $0.166

5000 pcs: $0.145

10000 pcs: $0.138

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.302

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0010085061

Part Number	0010085061	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER VERT TIN 6CKT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	95342 pcs	Data sheet	0010085061.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 1 Wall
Series	KK 2599	Row Spacing - Mating	-
Pitch - Mating	0.200" (5.08mm)	Packaging	Bulk
Overall Contact Length	0.750" (19.05mm)	Other Names	0010-08-5061 10-08-5061 10085061 2599M-06A WM4335
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	6
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-2	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polyamide (PA66), Nylon 6/6
Insulation Height	0.375" (9.53mm)	Insulation Color	Natural
Ingress Protection	-	Features	-
Fastening Type	Push-Pull	Detailed Description	Connector Header Through Hole 6 position 0.200" (5.08mm)
Current Rating	-	Contact Type	Male Pin
Contact Shape	Circular	Contact Material	Brass
Contact Length - Post	0.175" (4.45mm)	Contact Length - Mating	0.450" (11.43mm)
Contact Finish Thickness - Post	-	Contact Finish Thickness - Mating	100.0µin (2.54µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Header	Applications	General Purpose, Industrial, Telecommunications
