0022057128

Affinity Medical Technologies - a Molex company

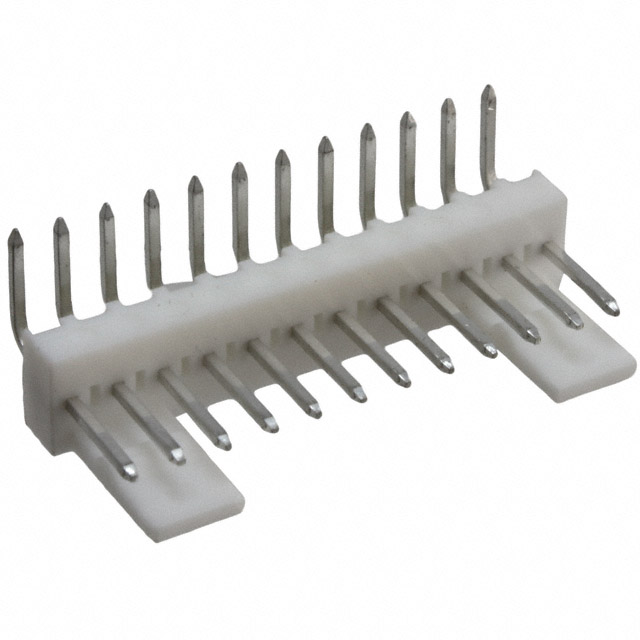

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0022057128
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	2.54MM KK HEADER R/A 12CKT
Datasheets:	1.0022057128.pdf 2.0022057128.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	44540 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 44540 pcs

Reference Price (In US Dollars)

1 pcs: $0.695

10 pcs: $0.631

100 pcs: $0.541

500 pcs: $0.451

1000 pcs: $0.386

5000 pcs: $0.343

10000 pcs: $0.335

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.695

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0022057128

Part Number	0022057128	Manufacturer	Affinity Medical Technologies - a Molex company
Description	2.54MM KK HEADER R/A 12CKT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	44540 pcs	Data sheet	1.0022057128.pdf 2.0022057128.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 1 Wall
Series	KK 7395	Row Spacing - Mating	-
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	22-05-7128 22057128 739512B WM4378
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	12
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polyamide (PA66), Nylon 6/6
Insulation Height	0.228" (5.80mm)	Insulation Color	Natural
Ingress Protection	-	Features	-
Fastening Type	Friction Lock	Detailed Description	Connector Header Through Hole, Right Angle 12 position 0.100" (2.54mm)
Current Rating	-	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Brass
Contact Length - Post	0.150" (3.81mm)	Contact Length - Mating	0.264" (6.70mm)
Contact Finish Thickness - Post	60.0µin (1.52µm)	Contact Finish Thickness - Mating	60.0µin (1.52µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Header	Applications	Automotive, General Purpose, Medical, Telecommunications
