0026481032

Affinity Medical Technologies - a Molex company

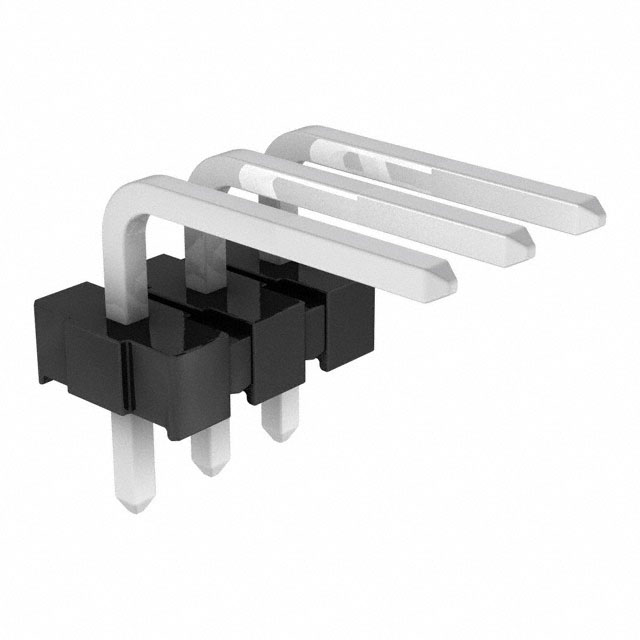

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0026481032
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 3POS .156 R/A TIN
Datasheets:	1.0026481032.pdf 2.0026481032.pdf 3.0026481032.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	242527 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 242527 pcs

Reference Price (In US Dollars)

1 pcs: $0.13

10 pcs: $0.123

25 pcs: $0.105

50 pcs: $0.089

100 pcs: $0.086

250 pcs: $0.077

500 pcs: $0.074

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.13

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0026481032

Part Number	0026481032	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 3POS .156 R/A TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	242527 pcs	Data sheet	1.0026481032.pdf 2.0026481032.pdf 3.0026481032.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Unshrouded
Series	KK 41662	Row Spacing - Mating	-
Pitch - Mating	0.156" (3.96mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	26-48-1032 WM4501 WM4501-ND WM50027-03
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	3
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polyester, Glass Filled
Insulation Height	0.128" (3.25mm)	Insulation Color	Black
Ingress Protection	-	Features	-
Fastening Type	Push-Pull	Detailed Description	Connector Header Through Hole, Right Angle 3 position 0.156" (3.96mm)
Current Rating	-	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Brass
Contact Length - Post	0.184" (4.67mm)	Contact Length - Mating	0.573" (14.55mm)
Contact Finish Thickness - Post	60.0µin (1.52µm)	Contact Finish Thickness - Mating	60.0µin (1.52µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Header, Breakaway	Applications	Automotive, General Purpose, Industrial, Medical, Telecommunications
