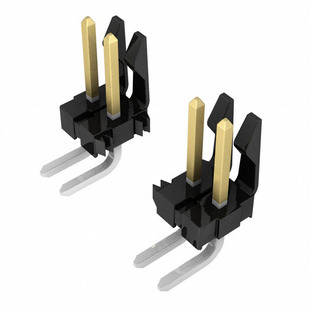

Part Number | 0026482116 | Manufacturer | Affinity Medical Technologies - a Molex company |
---|---|---|---|
Description | CONN HEADER 11POS .156 R/A GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 28308 pcs | Data sheet | 0026482116.pdf |
Voltage Rating | - | Termination | Solder |
Style | Board to Board or Cable | Shrouding | Shrouded - 1 Wall |
Series | KK 41672 | Row Spacing - Mating | - |
Pitch - Mating | 0.156" (3.96mm) | Packaging | Bulk |
Overall Contact Length | - | Other Names | 0026-48-2116 0026-48-2116-P 0026482116-P 26-48-2116 26-48-2116-P 26482116 26482116-P WM50011-11 WM50011-2116 WM50011-2116-ND WM5221 WM5221-ND |
Operating Temperature | - | Number of Rows | 1 |
Number of Positions Loaded | All | Number of Positions | 11 |
Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyester |
Insulation Height | 0.355" (9.02mm) | Insulation Color | Black |
Ingress Protection | - | Features | - |
Fastening Type | Friction Lock | Detailed Description | Connector Header Through Hole, Right Angle 11 position 0.156" (3.96mm) |
Current Rating | - | Contact Type | Male Pin |
Contact Shape | Square | Contact Material | Brass |
Contact Length - Post | 0.212" (5.38mm) | Contact Length - Mating | 0.450" (11.43mm) |
Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 20.0µin (0.51µm) |
Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
Connector Type | Header, Breakaway | Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
