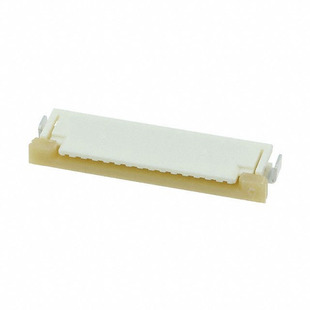

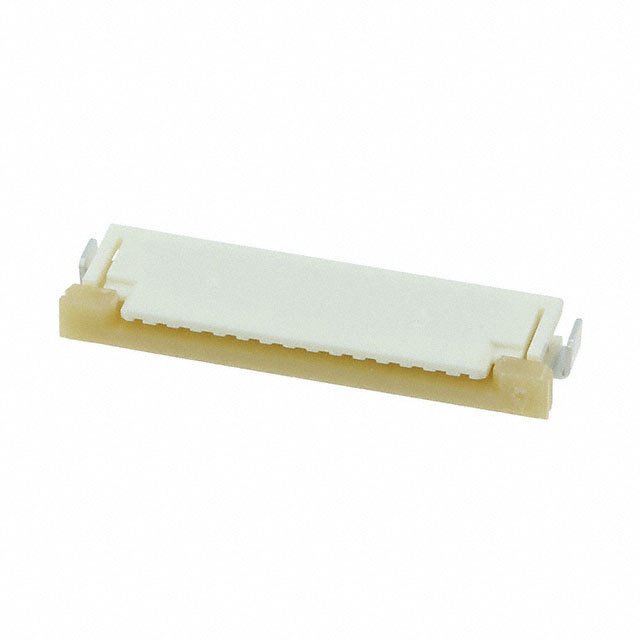

Part Number | 0522071533 | Manufacturer | Affinity Medical Technologies - a Molex company |
---|---|---|---|
Description | CONN FFC FPC TOP 15POS 1MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 48946 pcs | Data sheet | 0522071533.pdf |
Voltage Rating | 125V | Termination | Solder |
Series | Easy-On 52207 | Pitch | 0.039" (1.00mm) |
Packaging | Original-Reel® | Other Names | WM10950DKR |
Operating Temperature | -40°C ~ 85°C | Number of Positions | 15 |
Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Mating Cycles | 30 | Material Flammability Rating | UL94 V-0 |
Locking Feature | Slide Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Housing Material | Polyamide (PA), Nylon, Glass Filled | Housing Color | White |
Height Above Board | 0.106" (2.70mm) | Flat Flex Type | FFC, FPC |
Features | Solder Retention, Zero Insertion Force (ZIF) | FFC, FCB Thickness | 0.30mm |
Detailed Description | 15 Position FFC, FPC Connector Contacts, Top 0.039" (1.00mm) Surface Mount, Right Angle | Current Rating | 1A |
Contact Material | Phosphor Bronze | Contact Finish Thickness | 39.4µin (1.00µm) |
Contact Finish | Tin Bismuth | Connector/Contact Type | Contacts, Top |
Cable End Type | Tapered | Actuator Material | Polyphenylene Sulfide (PPS) |
Actuator Color | Brown |
