0557634070

Affinity Medical Technologies - a Molex company

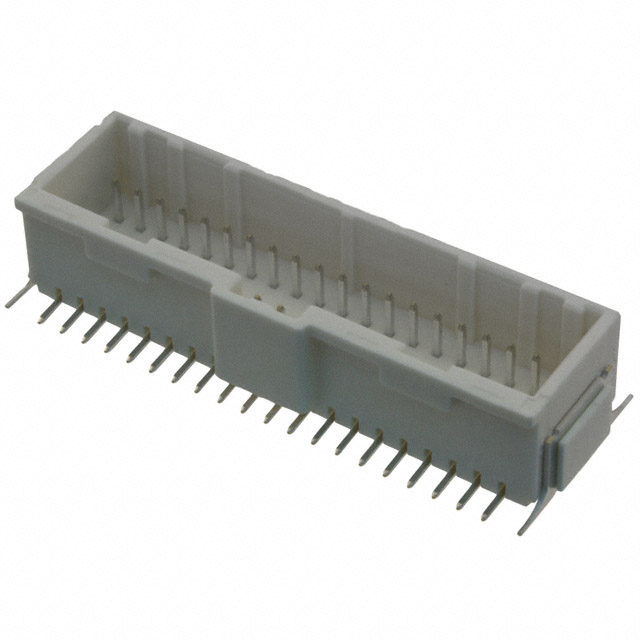

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0557634070
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	2.0 WTB DL CONN HSG ASSY 40CK
Datasheets:	0557634070.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	11222 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 11222 pcs

Reference Price (In US Dollars)

1 pcs: $3.087

10 pcs: $2.953

25 pcs: $2.685

50 pcs: $2.55

100 pcs: $2.483

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$3.087

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0557634070

Part Number	0557634070	Manufacturer	Affinity Medical Technologies - a Molex company
Description	2.0 WTB DL CONN HSG ASSY 40CK	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	11222 pcs	Data sheet	0557634070.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	MicroClasp	Row Spacing - Mating	0.197" (5.00mm)
Pitch - Mating	0.079" (2.00mm)	Packaging	Cut Tape (CT)
Overall Contact Length	-	Other Names	WM3449CT
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	40
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	14.15mm
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polyamide (PA46), Nylon 4/6
Insulation Height	0.398" (10.11mm)	Insulation Color	Natural
Ingress Protection	-	Features	Solder Retention
Fastening Type	Latch Holder	Detailed Description	Connector Header Surface Mount 40 position 0.079" (2.00mm)
Current Rating	-	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Brass
Contact Length - Post	-	Contact Length - Mating	-
Contact Finish Thickness - Post	-	Contact Finish Thickness - Mating	78.7µin (2.00µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Header	Applications	General Purpose, Industrial, Medical
