90136-2104

Affinity Medical Technologies - a Molex company

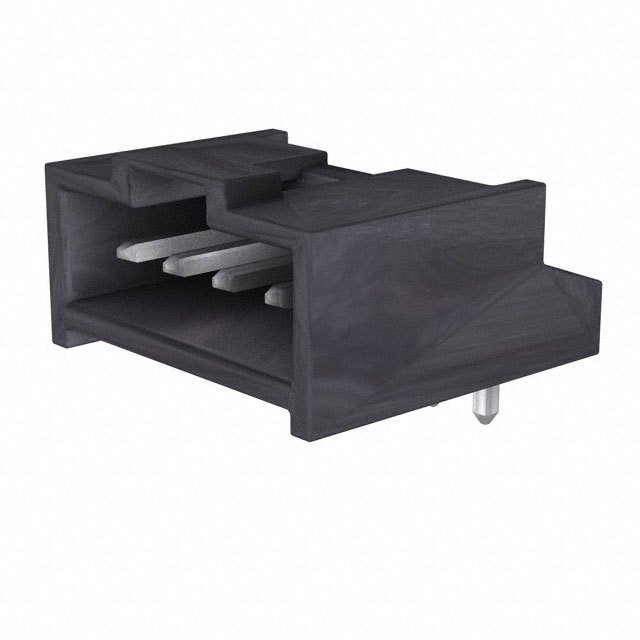

Image may be representation. See specifications for product details.

Product Overview

Part Number:	90136-2104
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 4POS .100" R/A TIN
Datasheets:	90136-2104.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	68398 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 68398 pcs

Reference Price (In US Dollars)

1 pcs: $0.45

10 pcs: $0.394

100 pcs: $0.34

500 pcs: $0.278

1000 pcs: $0.247

5000 pcs: $0.216

10000 pcs: $0.206

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.45

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 90136-2104

Part Number	90136-2104	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 4POS .100" R/A TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	68398 pcs	Data sheet	90136-2104.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	C-Grid III 90136	Row Spacing - Mating	-
Pitch - Mating	0.100" (2.54mm)	Packaging	Tray
Overall Contact Length	-	Other Names	0901362104 901362104 WM8195
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	4
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polyester, Glass Filled
Insulation Height	0.284" (7.21mm)	Insulation Color	Black
Ingress Protection	-	Features	-
Fastening Type	Latch Holder	Detailed Description	Connector Header Through Hole, Right Angle 4 position 0.100" (2.54mm)
Current Rating	-	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Brass
Contact Length - Post	0.114" (2.90mm)	Contact Length - Mating	0.266" (6.75mm)
Contact Finish Thickness - Post	-	Contact Finish Thickness - Mating	118.1µin (3.00µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Header	Applications	Automotive, General Purpose
