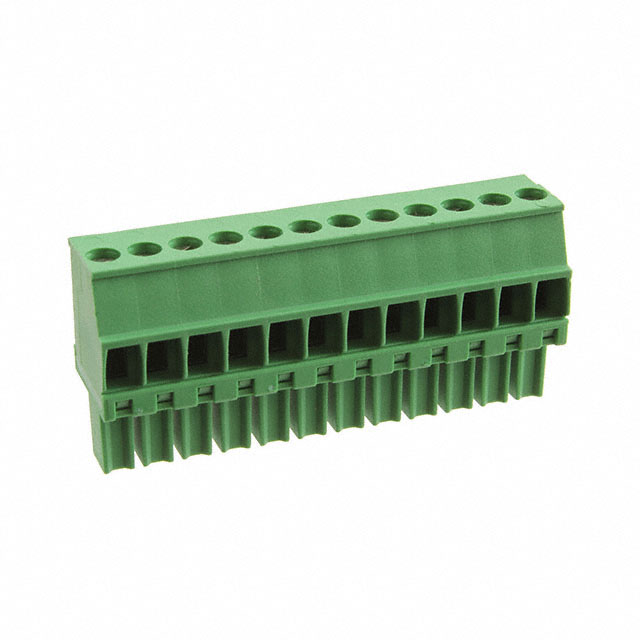

Part Number | 1-1986371-2 | Manufacturer | Agastat Relays / TE Connectivity |
---|---|---|---|
Description | TERM BLOCK PLUG 12POS 3.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 7395 pcs | Data sheet | 1-1986371-2.pdf |
Wire Strip Length | - | Wire Gauge or Range - mm² | 0.05-2mm² |
Wire Gauge or Range - AWG | 14-30 AWG | Voltage - UL | 300V |
Type | Plug, Female Sockets | Torque - Screw | - |
Termination Style | Screw - Rising Cage Clamp | Series | - |
Screw Size | M2 | Positions Per Level | 12 |
Plug Wire Entry | 270° | Pitch | 0.138" (3.50mm) |
Packaging | Bulk | Other Names | 1-1986371-2-ND A111981 |
Operating Temperature | -40°C ~ 110°C | Number of Positions | 12 |
Number of Levels | 1 | Mounting Type | Free Hanging (In-Line) |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.756" (19.20mm) |
Ingress Protection | - | Housing Material | Polyamide (PA66), Nylon 6/6 |
Header Orientation | - | Features | Side Stacking |
Detailed Description | 12 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 270° Free Hanging (In-Line) | Current - UL | 11A |
Current - IEC | - | Contact Tail Length | - |
Contact Mating Finish | Tin | Contact Material | Phosphor Bronze |
Color | Green |
