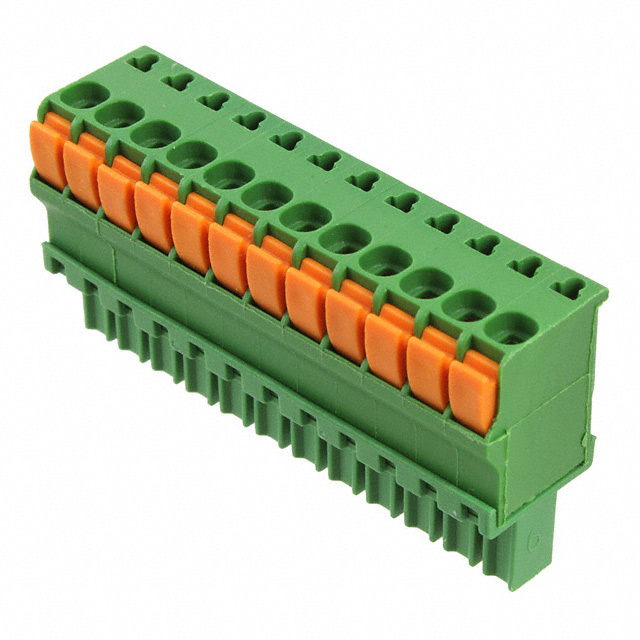

Agastat Relays / TE Connectivity
| Part Number | 1-1986693-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | TERM BLOCK PLUG 12POS STR 3.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6407 pcs | Data sheet | 1-1986693-2.pdf |
| Wire Strip Length | - | Wire Gauge or Range - mm² | 0.05-2mm² |
| Wire Gauge or Range - AWG | 14-30 AWG | Voltage - UL | 300V |
| Type | Plug, Female Sockets | Torque - Screw | - |
| Termination Style | Screwless - Leg Spring, Push-In Spring | Series | - |
| Screw Size | - | Positions Per Level | 12 |
| Plug Wire Entry | 180° | Pitch | 0.138" (3.50mm) |
| Packaging | Bulk | Other Names | 119866932 A104428 |
| Operating Temperature | -40°C ~ 110°C | Number of Positions | 12 |
| Number of Levels | 1 | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.459" (11.66mm) |
| Ingress Protection | - | Housing Material | Polyamide (PA), Nylon |
| Header Orientation | - | Features | Side Stacking |
| Detailed Description | 12 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 180° Free Hanging (In-Line) | Current - UL | 9A |
| Current - IEC | - | Contact Tail Length | - |
| Contact Mating Finish | Tin | Contact Material | Copper Alloy |
| Color | Green |
