1-2204801-8

Agastat Relays / TE Connectivity

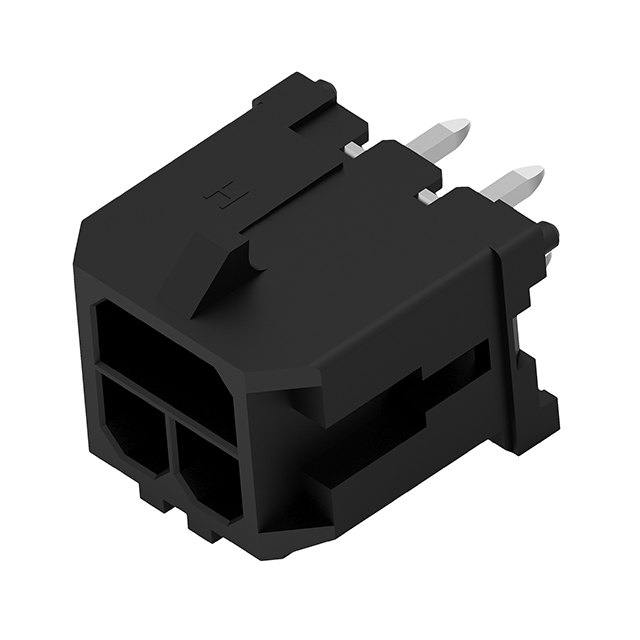

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1-2204801-8
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	1-2204801-8
Datasheets:	1-2204801-8.pdf
Stock Condition	55676 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 55676 pcs

Reference Price (In US Dollars)

1 pcs: $0.516

10 pcs: $0.467

25 pcs: $0.439

50 pcs: $0.42

100 pcs: $0.401

280 pcs: $0.363

560 pcs: $0.334

1120 pcs: $0.286

2520 pcs: $0.267

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.516

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1-2204801-8

Part Number	1-2204801-8	Manufacturer	Agastat Relays / TE Connectivity
Description	1-2204801-8	Lead Free Status / RoHS Status
Quantity Available	55676 pcs	Data sheet	1-2204801-8.pdf
Voltage Rating	600V	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	ELCON Micro	Row Spacing - Mating	0.118" (3.00mm)
Pitch - Mating	0.118" (3.00mm)	Packaging	Tray
Overall Contact Length	-	Other Names	A139406
Operating Temperature	-40°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	4
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	Not Applicable
Material Flammability Rating	-	Mated Stacking Heights	-
Lead Free Status	Lead free	Insulation Material	Thermoplastic
Insulation Height	0.390" (9.91mm)	Insulation Color	Black
Ingress Protection	-	Features	Board Guide
Fastening Type	Locking Ramp	Detailed Description	Connector Header Through Hole 4 position 0.118" (3.00mm)
Current Rating	-	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Copper Alloy
Contact Length - Post	0.125" (3.18mm)	Contact Length - Mating	-
Contact Finish Thickness - Post	-	Contact Finish Thickness - Mating	100.0µin (2.54µm)
Contact Finish - Post	-	Contact Finish - Mating	Tin
Connector Type	Header	Applications	-
