Agastat Relays / TE Connectivity

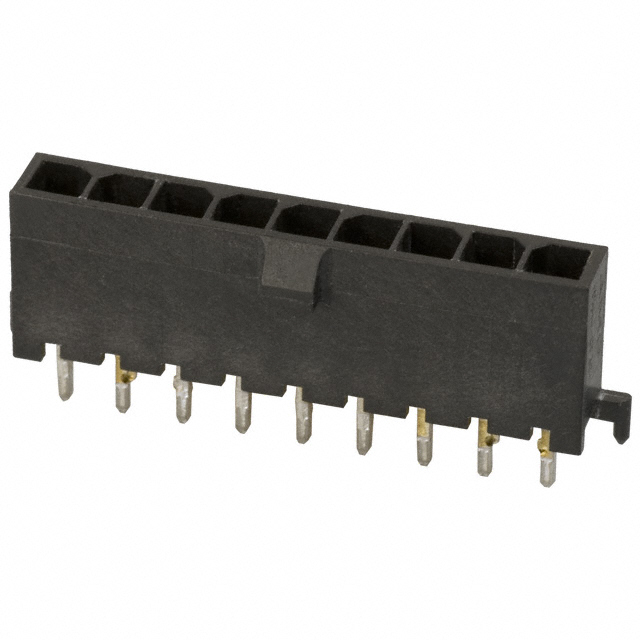

| Part Number | 2-1445084-9 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER 9POS VERT T/H 15GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 72333 pcs | Data sheet | 2-1445084-9.pdf |
| Voltage Rating | 250V | Termination | Press-Fit, Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | Micro MATE-N-LOK | Row Spacing - Mating | - |
| Pitch - Mating | 0.118" (3.00mm) | Packaging | Tray |
| Overall Contact Length | - | Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 9 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA), Nylon | Insulation Height | 0.364" (9.25mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Board Guide | Fastening Type | Locking Ramp |
| Detailed Description | Connector Header Through Hole 9 position 0.118" (3.00mm) | Current Rating | Varies by Wire Gauge |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | 0.125" (3.18mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | General Purpose |
