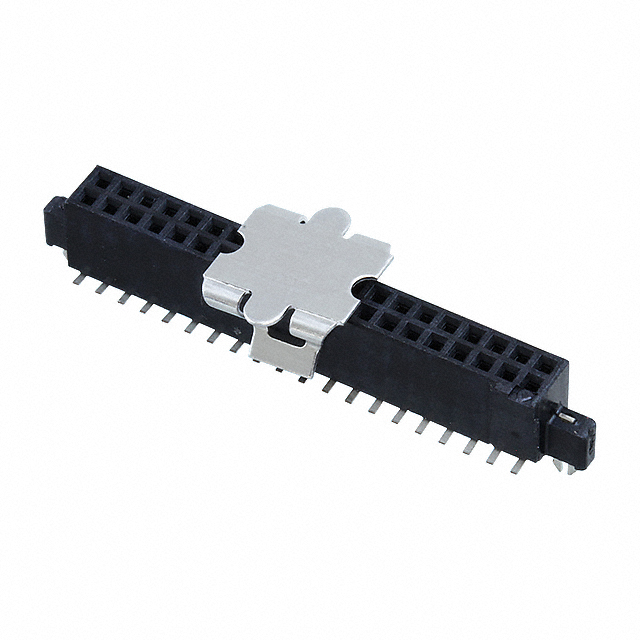

Part Number | 5-147384-4 | Manufacturer | Agastat Relays / TE Connectivity |
---|---|---|---|
Description | CONN RCPT 40POS VERT .050 SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 11860 pcs | Data sheet | 5-147384-4.pdf |
Voltage Rating | 30VAC | Termination | Solder |
Style | Board to Board or Cable | Series | AMPMODU 50/50 Grid |
Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
Packaging | Cut Tape (CT) | Other Names | A118909CT |
Operating Temperature | -65°C ~ 105°C | Number of Rows | 2 |
Number of Positions Loaded | All | Number of Positions | 40 |
Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 6.35mm, 8.13mm, 9.91mm |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
Insulation Height | 0.187" (4.75mm) | Insulation Color | Black |
Ingress Protection | - | Features | Board Lock, Pick and Place |
Fastening Type | Push-Pull | Detailed Description | 40 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold |
Current Rating | 0.5A per Contact | Contact Type | Female Socket |
Contact Shape | Square | Contact Material | Copper Alloy |
Contact Length - Post | - | Contact Finish Thickness - Post | 150.0µin (3.81µm) |
Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin |
Contact Finish - Mating | Gold | Connector Type | Receptacle |
Applications | - |
