5499913-6

Agastat Relays / TE Connectivity

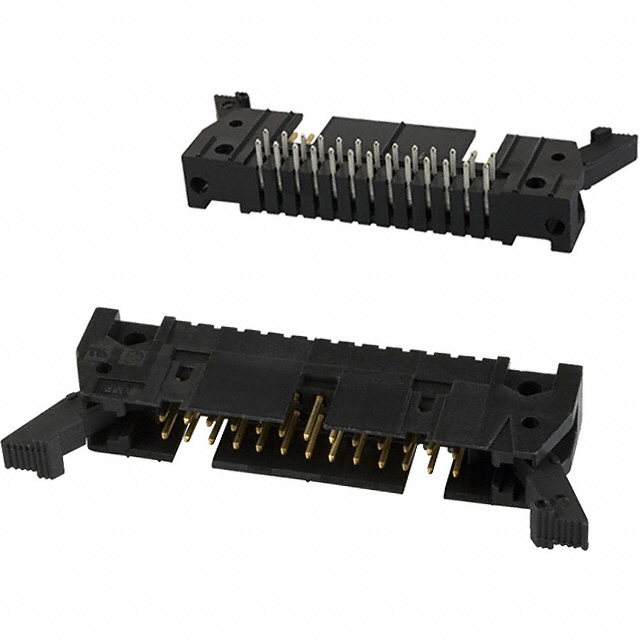

Image may be representation. See specifications for product details.

Product Overview

Part Number:	5499913-6
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER RT/A 26POS .100 GOLD
Datasheets:	5499913-6.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	17604 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 17604 pcs

Reference Price (In US Dollars)

1 pcs: $1.995

10 pcs: $1.915

100 pcs: $1.596

500 pcs: $1.356

1000 pcs: $1.157

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$1.995

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 5499913-6

Part Number	5499913-6	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER RT/A 26POS .100 GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	17604 pcs	Data sheet	5499913-6.pdf
Voltage Rating	250VAC	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	AMP-Latch	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Tray
Overall Contact Length	-	Other Names	54999136 AHB26H
Operating Temperature	-65°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	26
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	-
Insulation Height	0.315" (8.00mm)	Insulation Color	Black
Ingress Protection	-	Features	Keying Slot, Mounting Flange
Fastening Type	Latch Lock/Eject Hooks, Short	Detailed Description	Connector Header Through Hole, Right Angle 26 position 0.100" (2.54mm)
Current Rating	1A per Contact	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Brass
Contact Length - Post	0.110" (2.79mm)	Contact Length - Mating	0.240" (6.10mm)
Contact Finish Thickness - Post	100.0µin (2.54µm)	Contact Finish Thickness - Mating	15.0µin (0.38µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Gold or Gold-Palladium
Connector Type	Header	Applications	-
