OSA-SH-205DM5,600

Agastat Relays / TE Connectivity

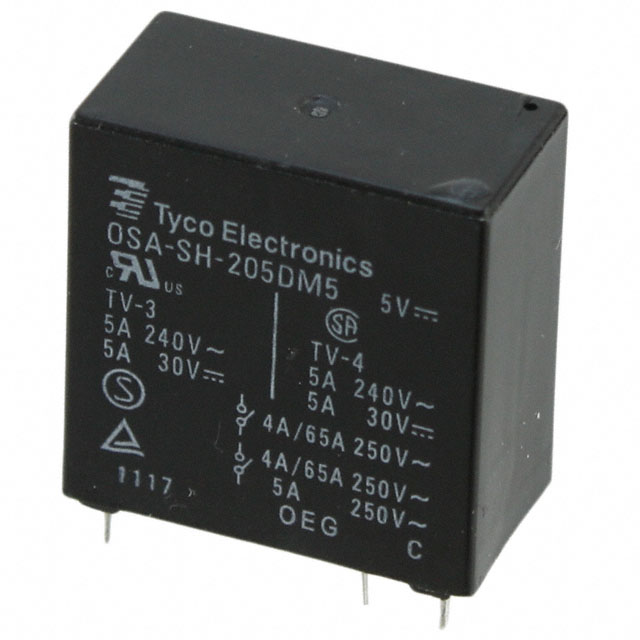

Image may be representation. See specifications for product details.

Product Overview

Part Number:	OSA-SH-205DM5,600
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	RELAY GENERAL PURPOSE DPST 5A 5V
Datasheets:	OSA-SH-205DM5,600.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	32755 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 32755 pcs

Reference Price (In US Dollars)

1 pcs: $0.987

10 pcs: $0.924

25 pcs: $0.821

50 pcs: $0.78

100 pcs: $0.739

250 pcs: $0.657

500 pcs: $0.616

1000 pcs: $0.575

5000 pcs: $0.554

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.987

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of OSA-SH-205DM5,600

Part Number	OSA-SH-205DM5,600	Manufacturer	Agastat Relays / TE Connectivity
Description	RELAY GENERAL PURPOSE DPST 5A 5V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	32755 pcs	Data sheet	OSA-SH-205DM5,600.pdf
Turn On Voltage (Max)	3.75 VDC	Turn Off Voltage (Min)	0.25 VDC
Termination Style	PC Pin	Switching Voltage	240VAC, 30VDC - Max
Series	OSA, OEG	Release Time	10ms
Relay Type	General Purpose	Packaging	Tray
Other Names	7-1440004-7 7-1440004-7-ND OSA-SH-205DM5 600 OSA-SH-205DM5 600-ND OSASH205DM5,600 OSASH205DM5600	Operating Temperature	-30°C ~ 60°C
Operate Time	20ms	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Sealed - Fully	Detailed Description	General Purpose Relay DPST-NO (2 Form A) 5VDC Coil Through Hole
Contact Rating (Current)	5A	Contact Material	Silver Tin Oxide (AgSnO)
Contact Form	DPST-NO (2 Form A)	Coil Voltage	5VDC
Coil Type	Non Latching	Coil Resistance	47 Ohms
Coil Power	540 mW	Coil Current	108mA
