DJ-503

AlfaMag Electronics (AMGIS)

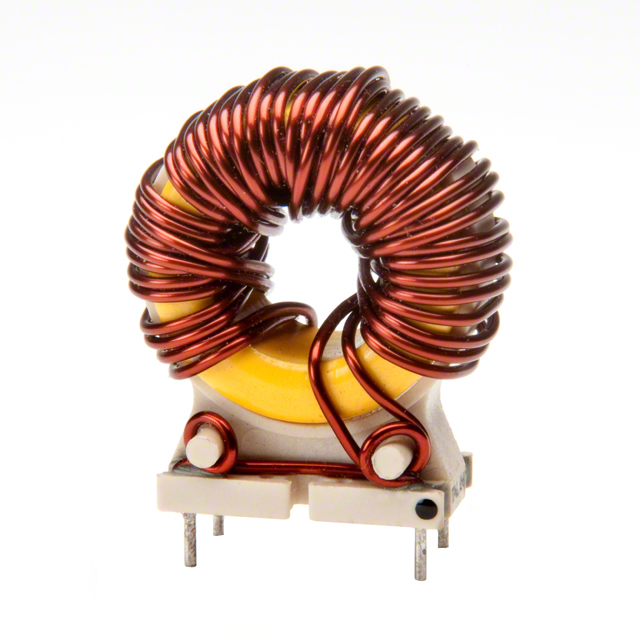

Image may be representation. See specifications for product details.

Product Overview

Part Number:	DJ-503
Manufacturer/Brand:	AlfaMag Electronics (AMGIS)
Product description	INDUCT ARRAY 2 COIL 25UH T/H
Datasheets:	DJ-503.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	13139 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 13139 pcs

Reference Price (In US Dollars)

64 pcs: $2.633

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.633

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of DJ-503

Part Number	DJ-503	Manufacturer	AlfaMag Electronics (AMGIS)
Description	INDUCT ARRAY 2 COIL 25UH T/H	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	13139 pcs	Data sheet	DJ-503.pdf
Tolerance	±15%	Size / Dimension	1.043" L x 0.531" W (26.50mm x 13.50mm)
Shielding	Unshielded	Series	DJ
Ratings	-	Packaging	Tray
Package / Case	Radial	Operating Temperature	-40°C ~ 125°C
Number of Coils	2	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance - Connected In Series	100µH	Inductance - Connected In Parallel	25µH
Height	1.161" (29.50mm)	Detailed Description	Unshielded 2 Coil Inductor Array 100µH Inductance - Connected in Series 25µH Inductance - Connected in Parallel 13 mOhm Max DC Resistance (DCR) - Parallel 6A Radial
DC Resistance (DCR) - Series	52 mOhm Max	DC Resistance (DCR) - Parallel	13 mOhm Max
Current Rating - Series	3A	Current Rating - Parallel	6A
