XF-10236

AlfaMag Electronics (AMGIS)

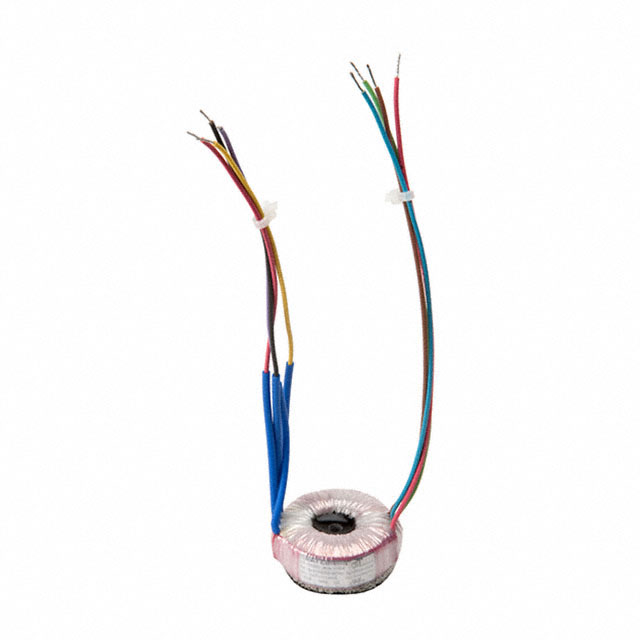

Image may be representation. See specifications for product details.

Product Overview

Part Number:	XF-10236
Manufacturer/Brand:	AlfaMag Electronics (AMGIS)
Product description	XFRMR TOROIDAL 25VA CHAS MOUNT
Datasheets:	XF-10236.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	4353 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 4353 pcs

Reference Price (In US Dollars)

10 pcs: $8.67

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$8.67

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of XF-10236

Part Number	XF-10236	Manufacturer	AlfaMag Electronics (AMGIS)
Description	XFRMR TOROIDAL 25VA CHAS MOUNT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4353 pcs	Data sheet	XF-10236.pdf
Weight	0.856 lb (388.28g)	Voltage - Secondary (Full Load)	Parallel 7V, Series 14V
Voltage - Primary	115V, 230V	Voltage - Isolation	4000Vrms
Type	Toroidal	Termination Style	Wire Leads
Size / Dimension	58.00mm Dia	Series	-
Secondary Winding(s)	Dual	Primary Winding(s)	Dual
Power - Max	25 VA	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height - Seated (Max)	34.50mm	Current - Output (Max)	Parallel 1.786A, Series 893mA
Center Tap	No
