Amphenol Pcd

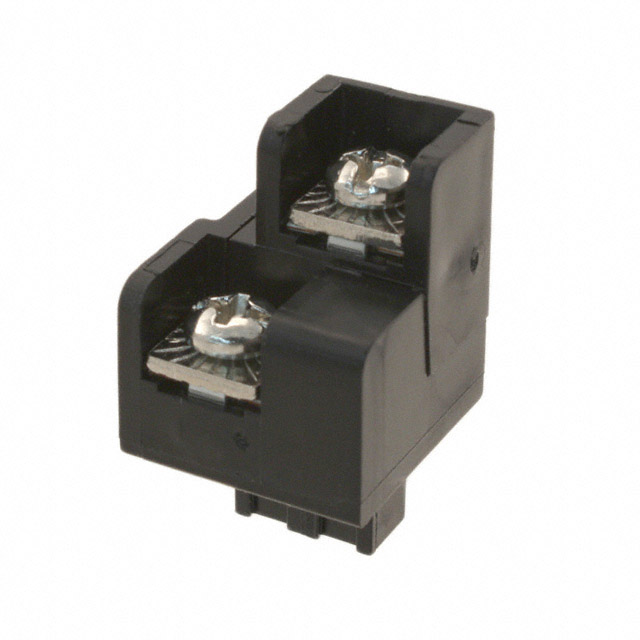

| Part Number | FXPT02200 | Manufacturer | Amphenol Pcd |
|---|---|---|---|
| Description | TERM BLOCK PLUG 2POS 5.08MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 53064 pcs | Data sheet | FXPT02200.pdf |
| Wire Strip Length | 7.87mm | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | 12-26 AWG | Voltage - UL | 300V |
| Type | Plug, Female Sockets | Torque - Screw | 1.13 Nm (10.0 Lb-In) |
| Termination Style | Screw with Captive Plate | Series | FXP FlexiPlug® |
| Screw Size | - | Positions Per Level | 1 |
| Plug Wire Entry | 90° | Pitch | 0.200" (5.08mm) |
| Packaging | Bulk | Other Names | APC1139 |
| Operating Temperature | 105°C | Number of Positions | 2 |
| Number of Levels | 2 | Mounting Type | Free Hanging (In-Line) |
| Material Flammability Rating | UL94 V-0 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.690" (17.53mm) | Ingress Protection | - |
| Housing Material | Polyphenylene Oxide (PPO) | Header Orientation | - |
| Features | Retention Latches (Non-Wire Side) | Detailed Description | 2 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 90° Free Hanging (In-Line) |
| Current - UL | 15A | Current - IEC | - |
| Contact Tail Length | - | Contact Mating Finish | Tin |
| Contact Material | Copper Alloy | Color | Black |
