Anytek (Amphenol Anytek)
| Part Number | HW0370500000G | Manufacturer | Anytek (Amphenol Anytek) |
|---|---|---|---|

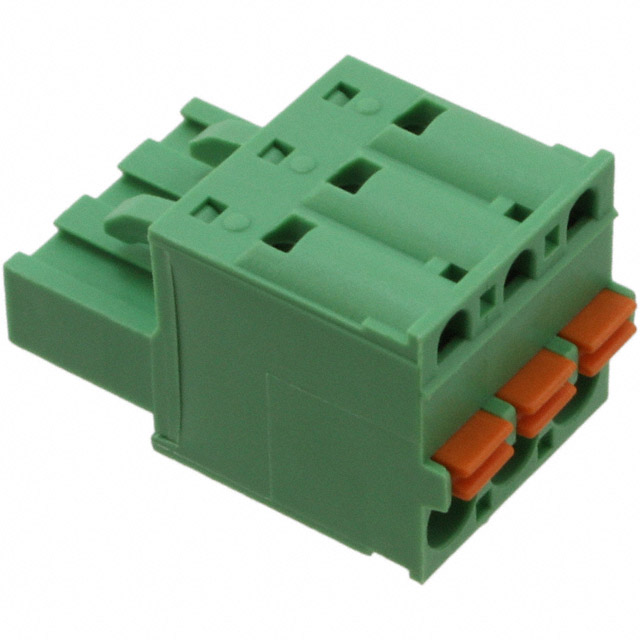

| Description | TERM BLOCK PLUG 3POS STR 5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 199021 pcs | Data sheet | HW0370500000G.pdf |
| Wire Strip Length | 8-9mm | Wire Gauge or Range - mm² | 2.5mm² |
| Wire Gauge or Range - AWG | 12-26 AWG | Voltage - UL | 300V |
| Type | Plug, Female Sockets | Torque - Screw | - |
| Termination Style | Screwless - Leg Spring, Push-In Spring | Series | 35-500 |
| Screw Size | - | Positions Per Level | 3 |
| Plug Wire Entry | 180° | Pitch | 0.197" (5.00mm) |
| Packaging | Bulk | Other Names | 20020038-G031B01LF 20020038G031B01LF 609-4580 HW0370500000G-ND HW03705000J0G HW03705000J0G-ND |
| Operating Temperature | -40°C ~ 115°C | Number of Positions | 3 |
| Number of Levels | 1 | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.591" (15.00mm) |
| Ingress Protection | - | Housing Material | Thermoplastic Resin |
| Header Orientation | - | Features | Retention Latches (Non-Wire Side) |
| Detailed Description | 3 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 180° Free Hanging (In-Line) | Current - UL | 10A |
| Current - IEC | - | Contact Tail Length | - |
| Contact Mating Finish | Tin | Contact Material | Copper Alloy |
| Color | Green |
