HDSP-7803

Avago Technologies (Broadcom Limited)

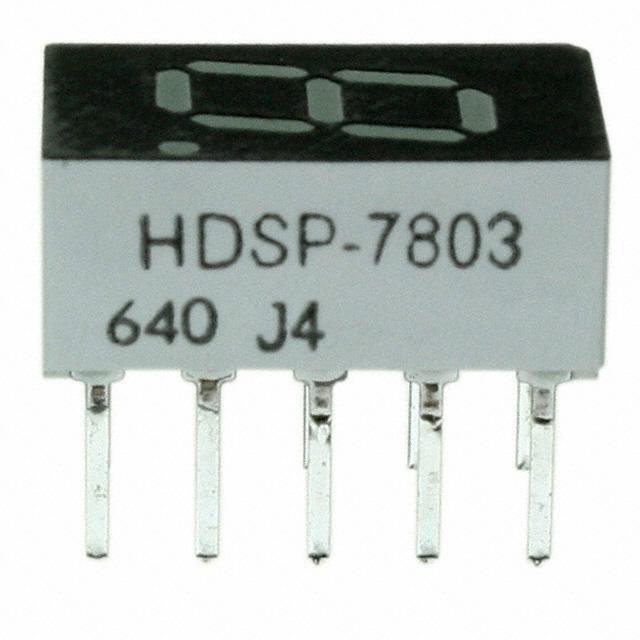

Image may be representation. See specifications for product details.

Product Overview

Part Number:	HDSP-7803
Manufacturer/Brand:	Avago Technologies (Broadcom Limited)
Product description	LED 7-SEG 7.6MM CC GREEN RHD
Datasheets:	HDSP-7803.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	34103 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 34103 pcs

Reference Price (In US Dollars)

1 pcs: $1.11

10 pcs: $0.984

25 pcs: $0.73

200 pcs: $0.635

400 pcs: $0.571

600 pcs: $0.508

1000 pcs: $0.437

2600 pcs: $0.413

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$1.11

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of HDSP-7803

Part Number	HDSP-7803	Manufacturer	Avago Technologies (Broadcom Limited)
Description	LED 7-SEG 7.6MM CC GREEN RHD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	34103 pcs	Data sheet	HDSP-7803.pdf
Wavelength - Peak	566nm	Voltage - Forward (Vf) (Typ)	2.1V
Size / Dimension	0.500" H x 0.300" W x 0.240" D (12.70mm x 7.62mm x 6.09mm)	Series	-
Power Dissipation (Max)	105mW	Packaging	Tube
Package / Case	10-DIP (0.200", 5.08mm)	Other Names	516-1205-5 HDSP7803
Number of Characters	1	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Millicandela Rating	6.8mcd	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Display Type	7-Segment	Digit/Alpha Size	0.30" (7.62mm)
Detailed Description	Character LED Display Module Green 7-Segment 1 Character Common Cathode 2.1V 10mA 0.500" H x 0.300" W x 0.240" D (12.70mm x 7.62mm x 6.09mm) 10-DIP (0.200", 5.08mm)	Current - Test	10mA
Common Pin	Common Cathode	Color	Green
