CTX25-4-R

Bussmann (Eaton)

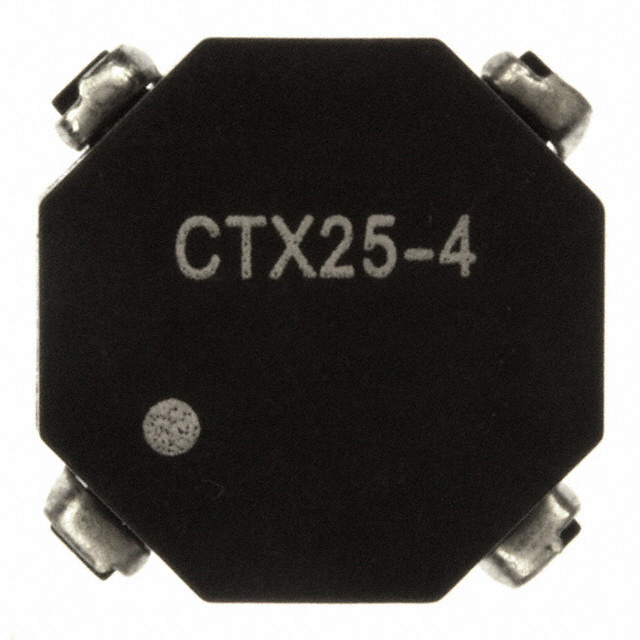

Image may be representation. See specifications for product details.

Product Overview

Part Number:	CTX25-4-R
Manufacturer/Brand:	Bussmann (Eaton)
Product description	INDUCT ARRAY 2 COIL 25.92UH SMD
Datasheets:	CTX25-4-R.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	29838 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 29838 pcs

Reference Price (In US Dollars)

600 pcs: $1.126

1200 pcs: $1.053

3000 pcs: $1.017

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.126

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of CTX25-4-R

Part Number	CTX25-4-R	Manufacturer	Bussmann (Eaton)
Description	INDUCT ARRAY 2 COIL 25.92UH SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	29838 pcs	Data sheet	CTX25-4-R.pdf
Tolerance	±20%	Size / Dimension	0.550" L x 0.550" W (13.97mm x 13.97mm)
Shielding	Unshielded	Series	OCTA-PAC®
Ratings	-	Packaging	Tape & Reel (TR)
Package / Case	Nonstandard	Other Names	513-1207-2 CTX254R
Operating Temperature	-40°C ~ 85°C	Number of Coils	2
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance - Connected In Series	103.68µH
Inductance - Connected In Parallel	25.92µH	Height	0.250" (6.35mm)
Detailed Description	Unshielded 2 Coil Inductor Array 103.68µH Inductance - Connected in Series 25.92µH Inductance - Connected in Parallel 63 mOhm Max DC Resistance (DCR) - Parallel 2A Nonstandard	DC Resistance (DCR) - Series	253 mOhm Max
DC Resistance (DCR) - Parallel	63 mOhm Max	Current Rating - Series	1A
Current Rating - Parallel	2A
