Bussmann (Eaton)

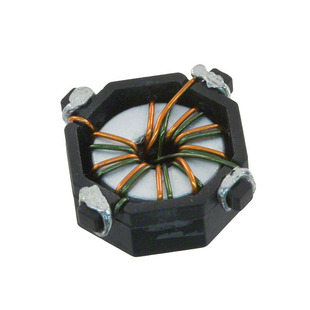

| Part Number | CTX5-1A-R | Manufacturer | Bussmann (Eaton) |
|---|---|---|---|
| Description | INDUCT ARRAY 2 COIL 4.7UH SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3628 pcs | Data sheet | CTX5-1A-R.pdf |
| Tolerance | ±25% | Size / Dimension | 0.450" L x 0.450" W (11.43mm x 11.43mm) |
| Shielding | Unshielded | Series | OCTA-PAC® PLUS |
| Ratings | - | Packaging | Original-Reel® |
| Package / Case | Nonstandard | Other Names | 513-1811-6 |
| Operating Temperature | -40°C ~ 85°C | Number of Coils | 2 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance - Connected In Series | 18.8µH |
| Inductance - Connected In Parallel | 4.7µH | Height | 0.165" (4.19mm) |
| Detailed Description | Unshielded 2 Coil Inductor Array 18.8µH Inductance - Connected in Series 4.7µH Inductance - Connected in Parallel 20 mOhm Max DC Resistance (DCR) - Parallel 4.27A Nonstandard | DC Resistance (DCR) - Series | 82 mOhm Max |
| DC Resistance (DCR) - Parallel | 20 mOhm Max | Current Saturation - Series | 1.88A |
| Current Saturation - Parallel | 3.75A | Current Rating - Series | 2.13A |
| Current Rating - Parallel | 4.27A |
