C&K

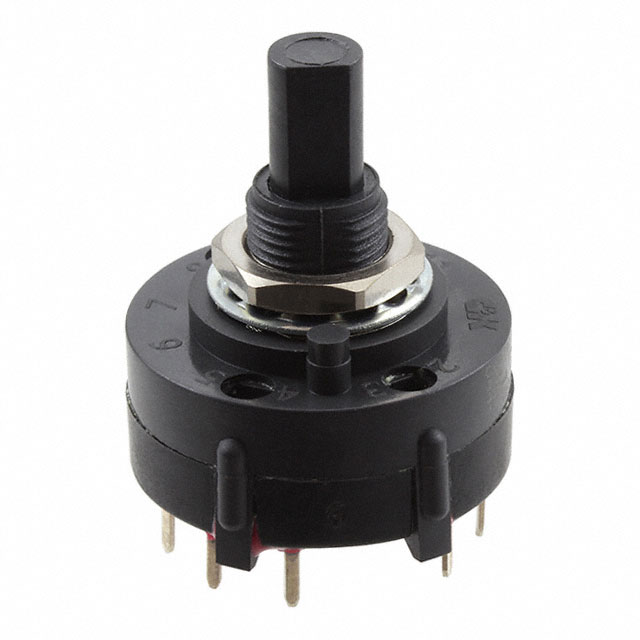

| Part Number | A20503RSCQE | Manufacturer | C&K |
|---|---|---|---|
| Description | SWITCH ROTARY 5POS 2.5A 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8941 pcs | Data sheet | A20503RSCQE.pdf |
| Voltage Rating - DC | 125V | Voltage Rating - AC | 125V |
| Termination Style | PC Pin | Series | A |
| Panel Cutout Dimensions | Circular - 9.80mm Dia | Other Names | *A20503RSCQE A20503RSCQE-ND CKN11321 |
| Operating Force | - | Number of Positions | 5 |
| Number of Poles per Deck | 2 | Number of Decks | 1 |
| Mounting Type | Panel Mount, Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Index Stops | Fixed |
| Features | Epoxy Sealed Terminals | Detailed Description | Rotary Switch 5 Position DP5T 2.5A (AC), 350mA (DC) 125VAC Panel Mount, Through Hole |
| Depth Behind Panel | 14.48mm | Current Rating | 2.5A (AC), 350mA (DC) |
| Contact Timing | Shorting (MBB) | Contact Material | Silver (Ag) |
| Contact Finish | Silver | Circuit per Deck | DP5T |
| Angle of Throw | 30° | Actuator Type | Flatted (6.35mm Dia) |
| Actuator Length | 9.53mm |
