SD04H1BD

C&K

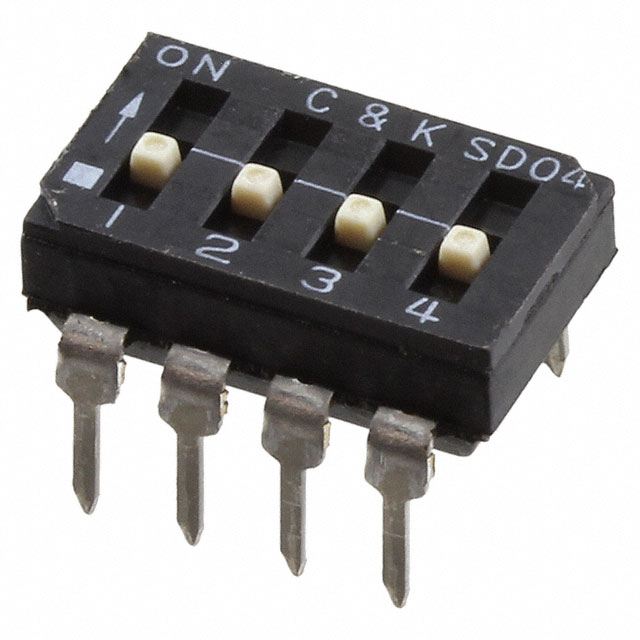

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SD04H1BD
Manufacturer/Brand:	C&K
Product description	SWITCH SLIDE DIP SPST 100MA 25V
Datasheets:	SD04H1BD.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	58894 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 58894 pcs

Reference Price (In US Dollars)

1 pcs: $0.555

10 pcs: $0.523

45 pcs: $0.501

90 pcs: $0.469

135 pcs: $0.459

270 pcs: $0.405

540 pcs: $0.384

1035 pcs: $0.341

5040 pcs: $0.299

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.555

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SD04H1BD

Part Number	SD04H1BD	Manufacturer	C&K
Description	SWITCH SLIDE DIP SPST 100MA 25V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	58894 pcs	Data sheet	SD04H1BD.pdf
Washable	No	Voltage Rating	25VDC
Termination Style	PC Pin	Series	SD
Pitch	0.100" (2.54mm), Full	Packaging	Tube
Other Names	7101SDV3QE SD04H1BD CKN10988 SD04H1BD-ND	Operating Temperature	-40°C ~ 85°C
Number of Positions	4	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	2,000 Cycles
Length	0.458" (11.63mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height Above Board	0.178" (4.52mm)	Features	-
Electrical Life	2,000 Cycles	Detailed Description	Dip Switch SPST 4 Position Through Hole Slide (Standard) Actuator 100mA 25VDC
Current Rating	100mA	Contact Material	Beryllium Copper
Contact Finish	Gold	Circuit	SPST
Body Material	Polyphthalamide (PPA)	Actuator Type	Slide (Standard)
Actuator Level	Raised
