U15SD9V3GE

C&K

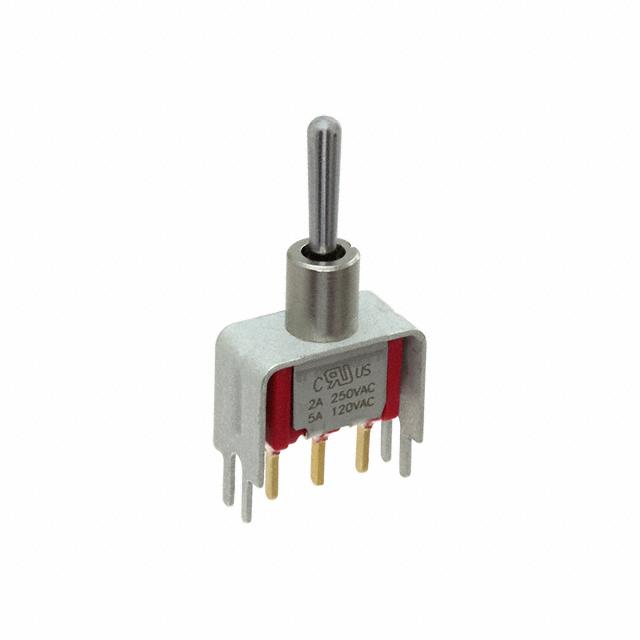

Image may be representation. See specifications for product details.

Product Overview

Part Number:	U15SD9V3GE
Manufacturer/Brand:	C&K
Product description	SWITCH TOGGLE SPDT 5A 120V
Datasheets:	U15SD9V3GE.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	11930 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 11930 pcs

Reference Price (In US Dollars)

1 pcs: $2.929

10 pcs: $2.851

25 pcs: $2.774

50 pcs: $2.62

100 pcs: $2.543

250 pcs: $2.466

500 pcs: $2.08

1000 pcs: $2.003

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$2.929

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of U15SD9V3GE

Part Number	U15SD9V3GE	Manufacturer	C&K
Description	SWITCH TOGGLE SPDT 5A 120V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	11930 pcs	Data sheet	U15SD9V3GE.pdf
Voltage Rating - DC	28V	Voltage Rating - AC	120V
Termination Style	PC Pin	Switch Function	Mom-Off-Mom
Series	7000	Panel Cutout Dimensions	-
Packaging	Bulk	Other Names	CKN11948 U15SD9V3GE-ND
Operating Temperature	-30°C ~ 85°C	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Illumination	Non-Illuminated
Features	Epoxy Sealed Terminals	Electrical Life	40,000 Cycles
Detailed Description	Toggle Switch SPDT Through Hole	Current Rating	5A (AC/DC)
Circuit	SPDT	Bushing Thread	Unthreaded
Actuator Type	Standard Round	Actuator Material	Brass, Chrome Plated
Actuator Length	12.45mm
