SJD1-3201-54

CUI, Inc.

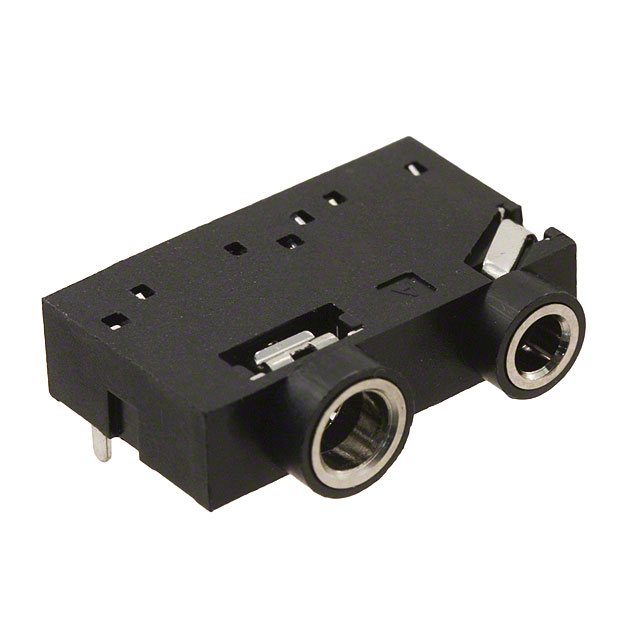

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SJD1-3201-54
Manufacturer/Brand:	CUI, Inc.
Product description	CONN JACK DUAL STEREO 2.5MM R/A
Datasheets:	SJD1-3201-54.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	38060 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 38060 pcs

Reference Price (In US Dollars)

1 pcs: $0.769

10 pcs: $0.699

25 pcs: $0.656

50 pcs: $0.628

100 pcs: $0.599

250 pcs: $0.542

500 pcs: $0.499

1000 pcs: $0.428

2500 pcs: $0.40

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.769

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SJD1-3201-54

Part Number	SJD1-3201-54	Manufacturer	CUI, Inc.
Description	CONN JACK DUAL STEREO 2.5MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	38060 pcs	Data sheet	SJD1-3201-54.pdf
Voltage - Rated	12VDC	Thread Size	-
Termination	Solder	Signal Lines	Stereo (3 Conductor, TRS)
Shielding	Unshielded	Series	-
Panel Hole Size	-	Packaging	Bulk
Other Names	045-1100R CP1-320154 SJD1-3201-54-ND SJD1320154	Operating Temperature	-20°C ~ 85°C
Number of Positions/Contacts	2 Sets of 3 Conductors, 9 Contacts	Mounting Type	Through Hole, Right Angle
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mating Length/Depth	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Internal Switch(s)	Single Switch, Two Switches
Insulation Color	-	Industry Recognized Mating Diameter	2.50mm (3/32", Sub Mini, Miniature) - Headphone
Includes	-	Housing Material	Polybutylene Terephthalate (PBT)
Gender	Female	Features	Board Guide
Detailed Description	2.50mm (3/32", Sub Mini, Miniature) - Headphone Phone Jack, Dual Stereo (3 Conductor, TRS) Connector Solder	Current Rating	1A
Contact Material - Plating	Tin	Contact Material	Brass; Copper Alloy
Connector Type	Phone Jack, Dual	California Prop 65	Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov.
Cable Opening	-	Body Material	-
Body Color	Black	Actual Diameter	0.102" (2.60mm), 0.142" (3.60mm)
