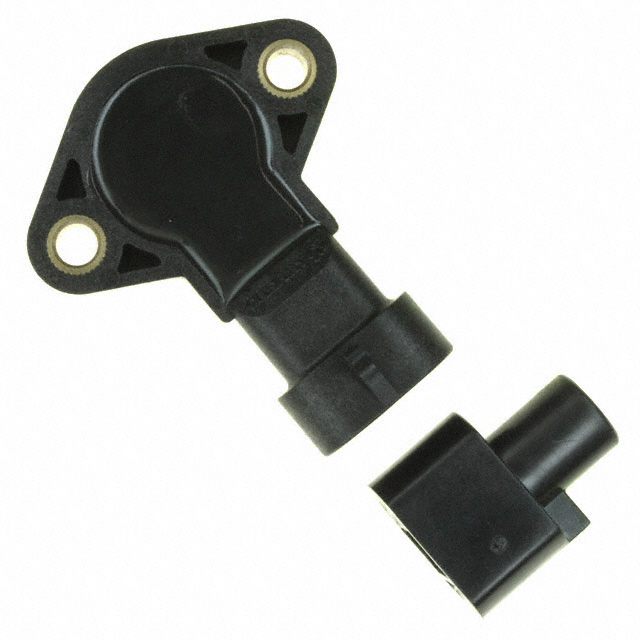

Part Number | CU103601 | Manufacturer | Cherry Switches (ZF Electronics) |
---|---|---|---|
Description | SENSOR ANGLE 180DEG CONNECTOR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 1556 pcs | Data sheet | 1.CU103601.pdf2.CU103601.pdf |
Voltage - Supply | 5V | Termination Style | Connector |
Technology | Hall Effect | Supplier Device Package | - |
Series | - | Rotation Angle - Electrical, Mechanical | 0° ~ 180°, Continuous |
Resistance Tolerance | - | Packaging | Box |
Package / Case | Module | Output Signal | Clockwise Increase |
Output | Analog Voltage | Other Names | CH926 CU103601-ND |
Operating Temperature | -40°C ~ 125°C | Mounting Type | Chassis Mount |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Linearity | ±3.5% |
Linear Range | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
For Measuring | Angle | Detailed Description | Hall Effect Sensor Angle External Magnet, Included Connector |
Actuator Type | External Magnet, Included |
