Conxall / Switchcraft

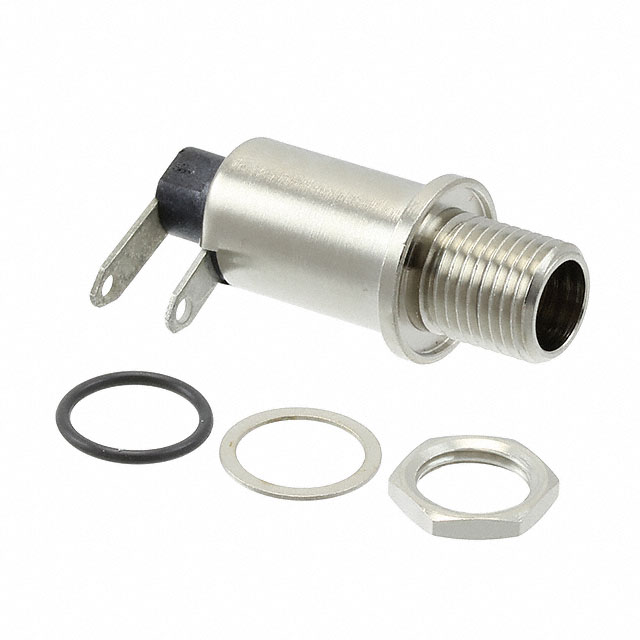

| Part Number | RAPC10U | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|
| Description | CONN POWER JACK SOLDER EYELET | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10499 pcs | Data sheet | 1.RAPC10U.pdf2.RAPC10U.pdf |
| Voltage - Rated | 24VAC/DC | Thread Size | 5/16"-32 |
| Termination | Solder Eyelet(s) | Shielding | Unshielded |
| Series | - | Packaging | Bulk |
| Other Names | SC2072 | Operating Temperature | -40°C ~ 105°C |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts | Mounting Type | Panel Mount |
| Mounting Feature | Bulkhead - Front Side Nut | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Length/Depth | - | Material Flammability Rating | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Internal Switch(s) | Does Not Contain Switch |
| Insulation Color | - | Ingress Protection | - |
| Industry Recognized Mating Diameter | 2.00mm ID (0.079"), 5.50mm OD (0.217") | Includes | 4 pcs - 1 Connector, 1 Nut, 1 O-Ring, 1 Washer |
| Housing Material | Thermoplastic | Gender | Male |
| Features | Mounting Hardware | Detailed Description | Power Barrel Connector Jack 2.00mm ID (0.079"), 5.50mm OD (0.217") Panel Mount |
| Current Rating | 10A | Contact Material - Plating | Tin |
| Contact Material | Copper Alloy | Connector Type | Jack |
| Body Material | Copper Alloy | Body Color | Silver, Black |
| Actual Diameter | 0.076" (1.93mm ID), 0.226" (5.75mm OD) |
