ATE1F-5M3-10-Z

Copal Electronics

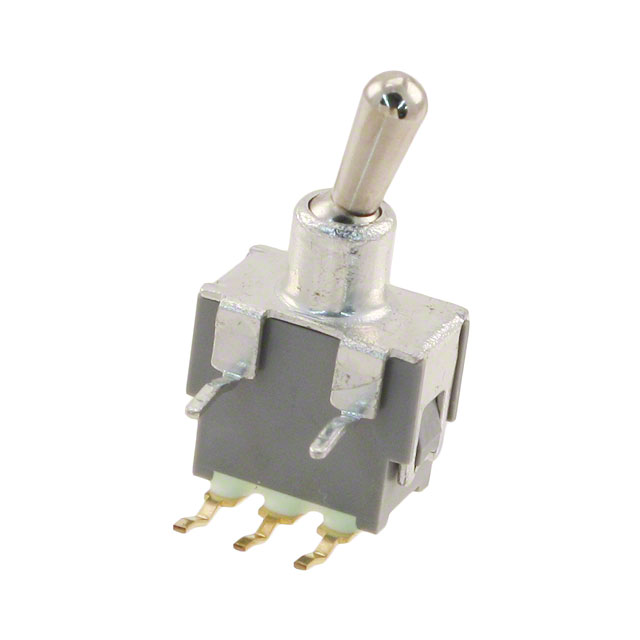

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ATE1F-5M3-10-Z
Manufacturer/Brand:	Copal Electronics
Product description	SWITCH TOGGLE SPDT 50MA 48V
Datasheets:	ATE1F-5M3-10-Z.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	24504 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 24504 pcs

Reference Price (In US Dollars)

1 pcs: $1.201

10 pcs: $1.15

25 pcs: $1.10

50 pcs: $1.05

100 pcs: $0.95

300 pcs: $0.875

500 pcs: $0.80

1000 pcs: $0.70

5000 pcs: $0.675

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$1.201

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ATE1F-5M3-10-Z

Part Number	ATE1F-5M3-10-Z	Manufacturer	Copal Electronics
Description	SWITCH TOGGLE SPDT 50MA 48V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	24504 pcs	Data sheet	ATE1F-5M3-10-Z.pdf
Voltage Rating - DC	48V	Voltage Rating - AC	48V
Termination Style	PC Pin	Switch Function	On-Mom
Series	ATE	Panel Cutout Dimensions	-
Packaging	Bulk	Other Names	563-1767
Operating Temperature	-20°C ~ 85°C	Mounting Type	Through Hole, Right Angle
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Illumination	Non-Illuminated
Features	Washable	Electrical Life	30,000 Cycles
Detailed Description	Toggle Switch SPDT Through Hole, Right Angle	Current Rating	50mA (AC/DC)
Circuit	SPDT	Bushing Thread	Unthreaded
Actuator Type	Standard Round	Actuator Material	-
Actuator Length	6.00mm
